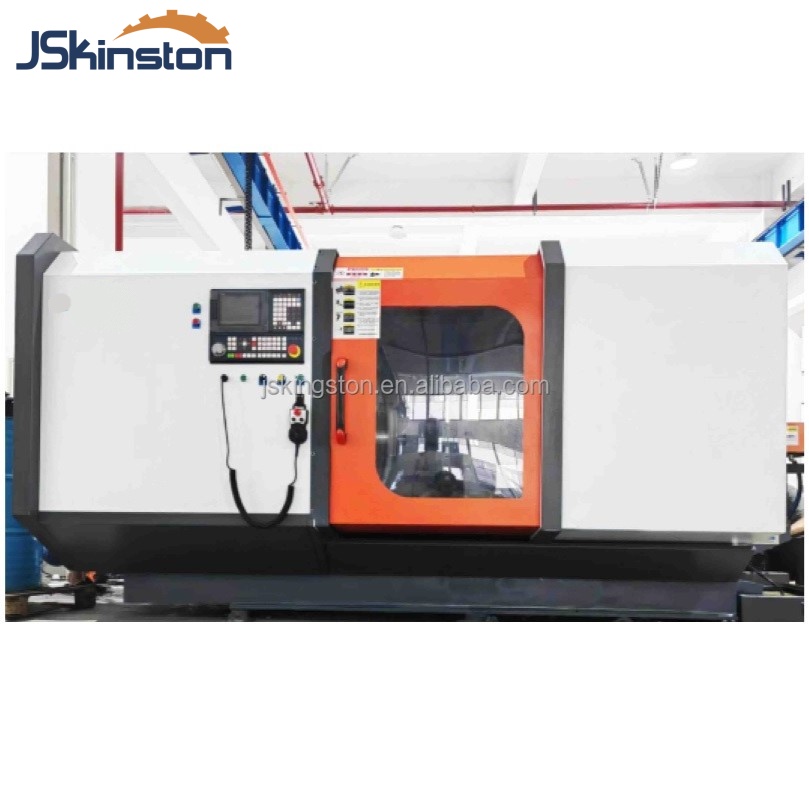

Kingston Brand Pipe Necking and CNC Spinning

  • Kingston Brand Pipe Necking and CNC Spinning
Kingston Brand Pipe Necking and CNC Spinning

Kingston Brand Pipe Necking and CNC Spinning

  • Product Item : S19
  • Product description:Kingston Brand-SP series CNC Spinning and Turning Machine (double roller) is especially developed to spin kitchenwares, lamps, auto fittings, ventilations and art wares. Kingston Brand Automatic Pip
  • Inquiry

Kingston Brand Pipe Necking and CNC Spinning

Purpose of Machine Tool:

KST-SP series CNC Spinning and Turning Machine (double roller)  is especially developed to spin kitchenwares, lamps, auto fittings, ventilations and art wares. It has many patents issued by the State Intellectual Property Office.This machine is practical, professional and strong. It has high production efficiency and can complete horn, bucket, cone type, parabolic products. It can also process threading, trimming, flanging and rolling at the same machine tool. The machine can spin many materials such as steel, alloy and copper etc. It has solved the traditional problems such as lack of skilled workers. With advanced digital control, it is easy to operate. The machine can improve the production efficiency, machining accuracy and saving the cost of human resources. It is the ideal processing machine for light, automobile, military, mechanic and other manufacturing industries.

Standard Configurations & Main Features:

◆  Siemens 808D as standard CNC system which has USB port.

◆  Meehanite cast iron after aging treatment, with high quality and less deformation.

◆  Guide rails are ultrasonic frequency quenched and with hardness of HRC52.

Adopted independent spindle unit to ensure good movement precision, stiffness and stability.

◆  Precision ball screws ensure dynamic performance well and positioning accurately.

◆  Feeding axles are controlled by servo motors.

◆  Spindle motor is Servo controlled.

◆  Hydraulic tailstock.

◆  Integrated automatic lubrication system makes the maintenance more reliable.

◆  Configuration cooling pump.

◆  Mobile manual pulse generator makes easy to operate.

◆  Semi-enclosed shield.

Optional Accessories (Extra Price):

◇ NC system such as FANUC,SIEMENS,GSK or KND is available for your selection.

Model

KST-SP400

KST-SP600

KST-SP800

KST-SP1000

Amount of Rollers

Sync 2+

Sync 2+

Sync 2+

Sync 2+

Max. Diameter of Material

Ø400 mm

Ø600 mm

Ø800 mm

Ø1000 mm

Max. Swing Over Slide

Ø200 mm

Ø300 mm

Ø500 mm

Ø600 mm

Max. Length of Work Piece

400 mm

500 mm

500 mm

600 mm

Thickness of Work Piece

0.5-5.0 mm (Aluminum, Copper)

0.5-3.2 mm

(Carbon Steel)

0.5-2.5 mm (Stainless Steel)

0.5-6.0 mm (Aluminum, Copper)

0.5-3.5 mm

(Carbon Steel)

0.5-3.0 mm (Stainless Steel)

0.5-7.0 mm (Aluminum, Copper)

0.5-4.0 mm

(Carbon Steel)

0.5-3.5 mm (Stainless Steel)

0.5-8.0 mm (Aluminum, Copper)

0.5-4.5 mm

(Carbon Steel)

0.5-4.0 mm (Stainless Steel)

X Travel

200 mm

230 mm

230 mm

610 mm

Z Travel

450 mm

750 mm

750 mm

780 mm

Pushing Force for X Axis

30 kN

35 kN

40 kN

60 kN

Pushing Force for Z Axis

30 kN

35 kN

40 kN

60 kN

Pushing Force of Tailstock

20 kN

30 kN

30 kN

40 kN

Guide Rail Type

Linear Guide Rail

Linear Guide Rail

Linear Guide Rail

Linear Guide Rail

Width of Bed

500 mm

525 mm

525 mm

850 mm

Rapid Traverse X/Z

10/15 m/min

10/15 m/min

10/15 m/min

8/12 m/min

Servo Power X/Z

10/10 N.m

15/10 N.m

15/10 N.m

20/15 N.m

Pulse Equivalent X/Z

0.001 mm

0.001 mm

0.001 mm

0.001 mm

Positioning Accuracy

0.010 mm

0.015 mm

0.015 mm

0.015 mm

Repetitive Positioning Accuracy

0.006 mm

0.008 mm

0.008 mm

0.008 mm

Spindle Nose

A2-6

D8

D8

C11

Taper of Spindle Bore

MT6

90(1:20) Metric

90(1:20) Metric

120(1:20) Metric

Spindle Bore

Ø56 mm

Ø82 mm

Ø82 mm

Ø110 mm

Spindle Speed

3000 rpm

2500 rpm

2500 rpm

1500 rpm

Taper of Tailstock Quill

MT5

MT5

MT5

MT5

Travel of Tailstock

Null

450 mm

450 mm

500 mm

Travel of Tailstock Quill

250 mm

150 mm

150 mm

200 mm

Diameter of Tailstock Quill

Ø82 mm

Ø82 mm

Ø82 mm

Ø85 mm

Amount of Tools / Shank Size

4+1 / 25×25 mm2

4+1 / 30×30 mm2

4+1 / 30×30 mm2

6+1 / 30×30 mm2

Spindle Motor Power

7.5 kw

11 kw

15 kw

22 kw

Machining Accuracy

It 6

It 6

It 6

It 6

Surface Roughness

Ra 1.25

Ra 1.25

Ra 1.25

Ra 1.25

Overall Dimensions

2.5×1.7×1.8 m3

3.2×2.0×1.8 m3

3.2×2.0×2.0 m3

3.6×2.5×2.2 m3

Net Weight

3500 kg

4500 kg

6000 kg

8000 kg
