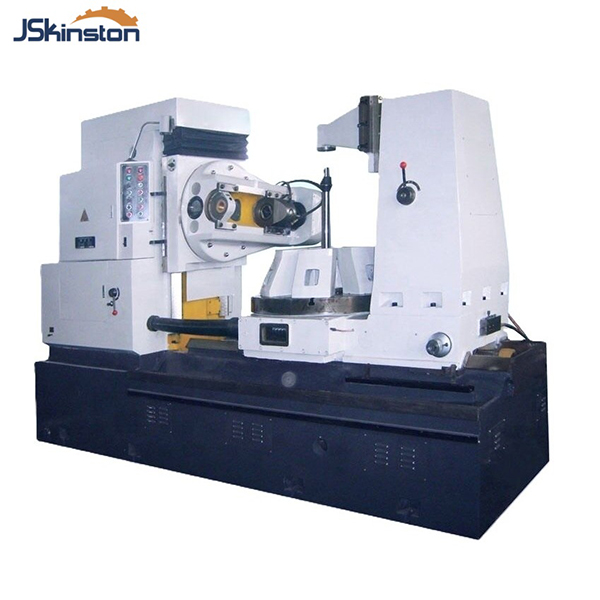

Kingston brand Y31125 Gear Hobbing Machine
Performance and features of this machine
This machine is suitable for large batch, small batch and single production of cylindrical spur, helical gears, worm wheel and chain wheel etc. with the process method of continuous cent.
This machine tool with wide bed, has features of good rigidity, high strength and precision, easy operation, adjustment and maintenance etc. Indexing worm gear of work table adopts precise worm wheel machine tool and special worm rod grinding bed for processing, which ensured high index precision. The worm wheel is made of high-quality copper which enhanced capacity of abrasion resistance.
The casting parts of machine tool is processed with precipitation heat treatment, which eliminated casting internal stress and avoided machine tool deformation. Machine bed and column guideway is processed with grinding treatment after quenching, which raised the hardness of guideway surface and enhanced capacity of abrasion resistance.
The adoption of drive gear for grinding and shaving process, which ensured the transmission accuracy.
Ⅱ. Specifications and main technical parameters
|
Maximum hobbing modulus |
Steel |
12 mm |
|
Cast iron |
6 mm |
|
|
Maximum workpiece diameter when processing straight tooth gear |
With rear column |
1000 mm |
|
Without rear column |
1250 mm |
|
|
Maximum workpiece width when processing straight tooth gear (width between centre≥200) |
450 mm |
|
|
Maximum travel of tool post slide |
470 mm |
|
|
Distance between cutter axis and work table |
Maximum |
690 mm |
|
Minimum |
220 mm |
|
|
Distance between axis of cutter and work table |
Maximum |
750 mm |
|
Minimum |
100 mm |
|
|
Spindle hole |
Morse 6 |
|
|
Maximum dimension of cutter |
Diameter |
260 mm |
|
Length |
300 mm |
|
|
Diameter of changeable hobbing centre axis |
27, 32, 40, 50,60 mm |
|
|
Maximum axial movement of cutter |
100 mm |
|
|
Maximum loading capacity of work table |
3 tons |
|
|
Diameter of work table |
1000 mm |
|
|
ore diameter of work table |
220 mm |
|
|
Taper bore of workpiece mandrel |
Morse 6 |
|
|
Degree of spindle rotation |
Class 7 |
|
|
Rotary range of spindle |
16-125 r/m |
|
|
Degree of vertical feed rate |
Class 8 |
|
|
Range of vertical feed rate |
0.39-4.39 mm/ work table rotation |
|
|
Vertical rapid moving speed of sliding carriage |
0.525 m/min |
|
|
Vertical manual rotation speed of sliding carriage |
0.63 mm/r |
|
|
Rapid moving speed of work table |
0.47 m/min |
|
|
Accuracy of radial manual federate of work table |
.02 mm |
|
|
Power and rated speed of main motor |
N=11 Kw 1440 r/m |
|
|
Power and rated speed of rapid motor |
N=3 Kw 1420 r/m |
|
|
Power and rated speed of rapid motor of work table |
N=1.5 Kw 940 r/m |
|
|
Power and rated speed of motor of hydraulic oil pump |
N=1.5 Kw 940 r/m |
|
|
Power and rated speed of motor of cooling pump |
N=0.4 Kw 2800 r/m |
|
|
Machine overall dimension (length×width×height) |
3750×2040×2500 mm |
|
|
Machine weight(about) |
13.5T |
|
