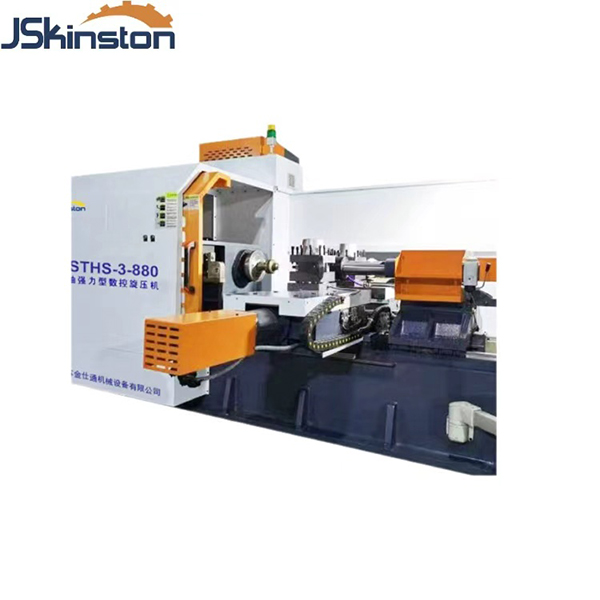

Kingston Brand CNC Kitchen utensils military aerospace spinning machine

Product Item : S10
Product description：Kingston Brand-SP series CNC Spinning and Turning Machine (double roller) is especially developed to spin kitchenwares, lamps, auto fittings, ventilations and art wares. Kingston Brand Automatic Pip
Inquiry

Kingston Brand CNC Kitchen utensils military aerospace spinning machine

Purpose of Machine Tool:

KST-SP series CNC Spinning and Turning Machine (double roller) is especially developed to spin kitchenwares, lamps, auto fittings, ventilations and art wares. It has many patents issued by the State Intellectual Property Office.This machine is practical, professional and strong. It has high production efficiency and can complete horn, bucket, cone type, parabolic products. It can also process threading, trimming, flanging and rolling at the same machine tool. The machine can spin many materials such as steel, alloy and copper etc. It has solved the traditional problems such as lack of skilled workers. With advanced digital control, it is easy to operate. The machine can improve the production efficiency, machining accuracy and saving the cost of human resources. It is the ideal processing machine for light, automobile, military, mechanic and other manufacturing industries.

Standard Configurations & Main Features:

◆ Siemens 808D as standard CNC system which has USB port.

◆ Meehanite cast iron after aging treatment, with high quality and less deformation.

◆ Guide rails are ultrasonic frequency quenched and with hardness of HRC52.

◆ Adopted independent spindle unit to ensure good movement precision, stiffness and stability.

◆ Precision ball screws ensure dynamic performance well and positioning accurately.

◆ Feeding axles are controlled by servo motors.

◆ Spindle motor is Servo controlled.

◆ Hydraulic tailstock.

◆ Integrated automatic lubrication system makes the maintenance more reliable.

◆ Configuration cooling pump.

◆ Mobile manual pulse generator makes easy to operate.

◆ Semi-enclosed shield.

Optional Accessories (Extra Price):

◇ NC system such as FANUC，SIEMENS，GSK or KND is available for your selection.

Model	KST-SP400	KST-SP600	KST-SP800	KST-SP1000
Amount of Rollers	Sync 2+	Sync 2+	Sync 2+	Sync 2+
Max. Diameter of Material	Ø400 mm	Ø600 mm	Ø800 mm	Ø1000 mm
Max. Swing Over Slide	Ø200 mm	Ø300 mm	Ø500 mm	Ø600 mm
Max. Length of Work Piece	400 mm	500 mm	500 mm	600 mm
Thickness of Work Piece	0.5-5.0 mm (Aluminum, Copper) 0.5-3.2 mm (Carbon Steel) 0.5-2.5 mm (Stainless Steel)	0.5-6.0 mm (Aluminum, Copper) 0.5-3.5 mm (Carbon Steel) 0.5-3.0 mm (Stainless Steel)	0.5-7.0 mm (Aluminum, Copper) 0.5-4.0 mm (Carbon Steel) 0.5-3.5 mm (Stainless Steel)	0.5-8.0 mm (Aluminum, Copper) 0.5-4.5 mm (Carbon Steel) 0.5-4.0 mm (Stainless Steel)
X Travel	200 mm	230 mm	230 mm	610 mm
Z Travel	450 mm	750 mm	750 mm	780 mm
Pushing Force for X Axis	30 kN	35 kN	40 kN	60 kN
Pushing Force for Z Axis	30 kN	35 kN	40 kN	60 kN
Pushing Force of Tailstock	20 kN	30 kN	30 kN	40 kN
Guide Rail Type	Linear Guide Rail	Linear Guide Rail	Linear Guide Rail	Linear Guide Rail
Width of Bed	500 mm	525 mm	525 mm	850 mm
Rapid Traverse X/Z	10/15 m/min	10/15 m/min	10/15 m/min	8/12 m/min
Servo Power X/Z	10/10 N.m	15/10 N.m	15/10 N.m	20/15 N.m
Pulse Equivalent X/Z	0.001 mm	0.001 mm	0.001 mm	0.001 mm
Positioning Accuracy	0.010 mm	0.015 mm	0.015 mm	0.015 mm
Repetitive Positioning Accuracy	0.006 mm	0.008 mm	0.008 mm	0.008 mm
Spindle Nose	A2-6	D8	D8	C11
Taper of Spindle Bore	MT6	90(1:20) Metric	90(1:20) Metric	120(1:20) Metric
Spindle Bore	Ø56 mm	Ø82 mm	Ø82 mm	Ø110 mm
Spindle Speed	3000 rpm	2500 rpm	2500 rpm	1500 rpm
Taper of Tailstock Quill	MT5	MT5	MT5	MT5
Travel of Tailstock	Null	450 mm	450 mm	500 mm
Travel of Tailstock Quill	250 mm	150 mm	150 mm	200 mm
Diameter of Tailstock Quill	Ø82 mm	Ø82 mm	Ø82 mm	Ø85 mm
Amount of Tools / Shank Size	4+1 / 25×25 mm²	4+1 / 30×30 mm²	4+1 / 30×30 mm²	6+1 / 30×30 mm²
Spindle Motor Power	7.5 kw	11 kw	15 kw	22 kw
Machining Accuracy	It 6	It 6	It 6	It 6
Surface Roughness	Ra 1.25	Ra 1.25	Ra 1.25	Ra 1.25
Overall Dimensions	2.5×1.7×1.8 m³	3.2×2.0×1.8 m³	3.2×2.0×2.0 m³	3.6×2.5×2.2 m³
Net Weight	3500 kg	4500 kg	6000 kg	8000 kg
