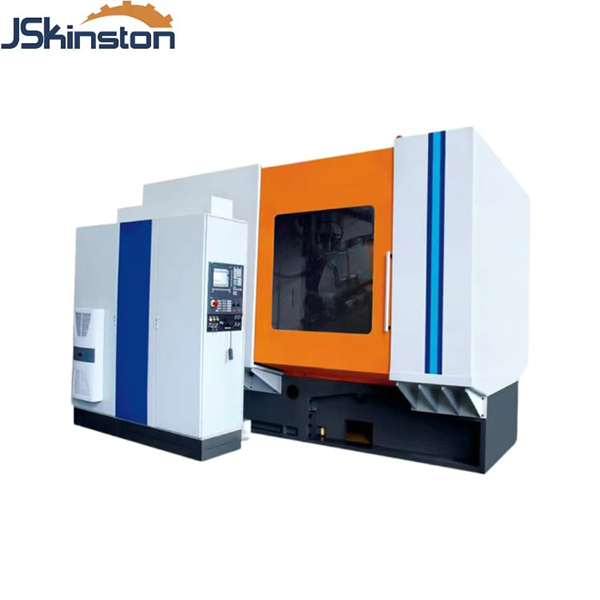

Kingston Brand CNC Gear Hobbing Machine YK31125CNC 6 Axis

Product Item : G7

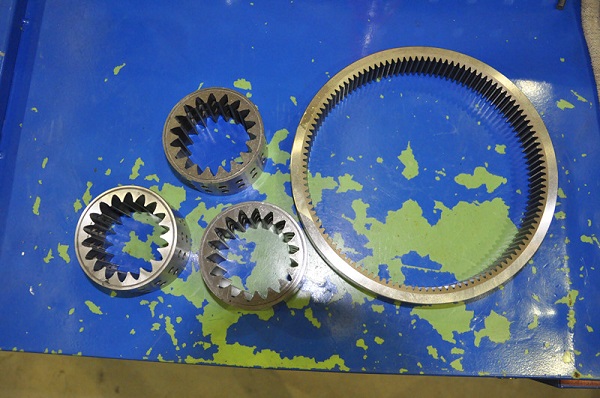

Product description：Kingston Brand CNC Gear Hobbing Machine YK31125CNC 6 Axis This machine is designed to cut gears used for industries, such as engineering machinery, reduction gearbox for the marine，heavy trucks and
Inquiry

Kingston Brand YK31125CNC 6 Axis

Description of the Machine

1．Main functions and application of the machine

The model YK31125CNC 6 Axis CNC gear hobbing machine is of 6-axis one, i.e. one spindle, five servo-axis, 6-axis with 4-coordinated control. Indexing motion, differential and feed compensations for cutting gears can be carried out by electronic gearbox. By optimum design concept, the machine adopts the shortest transmission train and reliable transmission method to make it have the features of compact construction, high efficiency and reliability. Hob dimensions, hob shifting travel and rigidity of the hob head for the machine come up to the same as the level of the machines with the same specifications at abroad.

The worktable is driven by super precision double-worm gearing to eliminate the transmission backlash and meet the requirements of cutting large workpiece. Based on the principle of constant current supply, hydrostatic bearings are supplied for the worktable to make it have high static & dynamic rigidity. Hydrostatic bearings are large-sized ones, so they are required to be super precision. Ample rectangle hardened steel guideways and preloaded linear recirculating roller guidance systems are used for the worktable to meet the requirements of high rigidity of the machine. The bed is welded construction.

2．Main specifications of the machine

Description	Unit	YK31125CNC 6 Axis
Max. workpiece diameter	mm	1250
Max. Module	mm	16
Max. spindle speed	r/min	275
Max. worktable speed	r/min	24
Center distance between the hob and the worktable	mm	100-780
Distance between the hob axis and the worktable surface (the hob head is at horizontal position)	mm	450~1050
Max. hob head swivel angle	degree	±45
Max. hob dimensions: diameter×length	mm	220×260
Max. hob shifting travel	mm	220
Worktable dimensions: diameter×bore diameter	mm	895×180
Total power/spindle motor power	KW	30
Overall dimensions：L×W×H	cm	586×480×352
Cases dimensions: L×W×H	cm	Case No.1: 396×219×319 Case No.2: 217×224×303 Case No.3: 291×200×201 Case No.4: 305×232×253 Case No.5: 243×1104×272
Net/gross weight	kg	Case No.1: 14310/15310 Case No.2: 9100/10140 Case No.3:1000/1650 Case No.4:1500/2170 Case No.5:1000/1880
