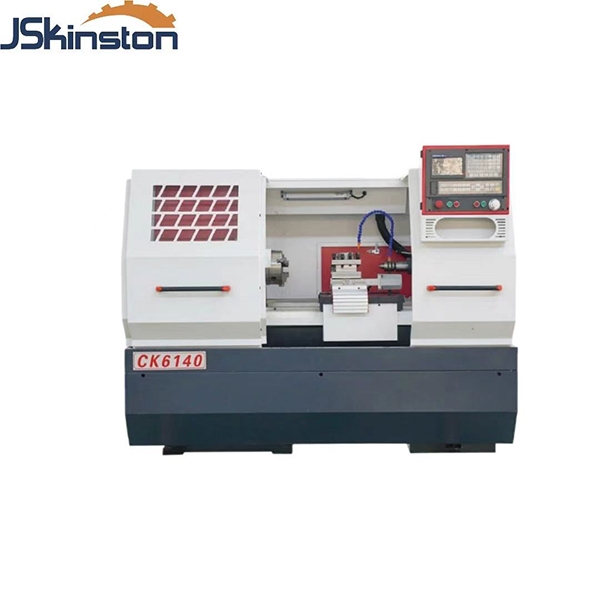

Kingston Brand CNC Lathe Machine CK6140

  • Kingston Brand CNC Lathe Machine CK6140
  • Kingston Brand CNC Lathe Machine CK6140
Kingston Brand CNC Lathe Machine CK6140Kingston Brand CNC Lathe Machine CK6140

Kingston Brand CNC Lathe Machine CK6140

  • Product Item : L20
  • Product description:Kingston Brand CNC Lathe Machine CK6140 Ø Features * High rigidity * With integral bed feet , rear tilted discharge chip, are the main model of our company. * Perfect precision * With high spind
  • Inquiry

Kingston Brand CNC-athe-Machine-CK6140

1Introduction of CK6140 CNC lathe

High rigidity

With integral bed feet , rear tilted discharge chip, are the main model of our company.

Perfect precision

With high spindle speed and perfect processing precision, excellent manufacture and advanced technology.

CK6136/40

1)    Featured with flat bed, wide hard guide way and fully enclosed safe guard., completely equipped, good outlook, high rigidity and perfect precision, good reliability, easy operation and good safety.

2)    As adopted with integral bed feet, supersonic hardened guide way, this machine has high rigidity and perfect precision bed, bed feet, spindle box and carriage, etc. all made by precious casting. Through the finite element analysis, reasonably arranged the stiffen ribbons; therefore effectively improve the processing capacity of the machine.

3)    There are 2 kinds of spindle box equipments for choice such as: 2-steps gear change speeds and single spindle stepless speeds change which can satisfy the customer who require the machine with big torque, high speeds processing , etc. the spindle bearing are bought from Japanese NSK precision bearings, and there are FANUC servo spindle for choosing.

4)    There are adjusting row tools for choice which can easy adjust the high of the centers and also convenient for the various tools used in processing.

5)    As the machine adopts the modular design, except the main spindle box and CNC system can be chosen by the customers, also the chucks such as handle chuck and 6 or 8 inch hydraulic chuck, tool posts such as vertical 4-positions, horizontal 6, 8-positions electrical tool posts or row tool posts; tail stocks such as handle or hydraulic tail stock for choice according to the requirements of the customers. Furthermore, we can supply the simple bar stock conveyor for your requirement.

6)     Fully enclosed safe guards were used in these machines. Because of the operation panel set with the pull door, the operation panel can move with the door at same time which will make the operation more convenient.

2Main technical parameters:

ITEM

CONTENTS

UNIT

CK6140



Max. swing over bed

mm

420

Max. swing over carriage

mm

210

Capacity

Center distance

mm

750/1000/1500

Max. turning length

mm

650/900/1400

Spindle

Range of spindle speed handle2 steps

r/min

L:75-750 H:250-2500(Normal chuck 2000)

Stepless

r/min

300-3000(Normal chuck 2000)

Spindle nose/ bore/taper of spindle hole

mm

A2-6/ 52/MT6

Spindle  Chucks/  Bore

mm

standard: N / 50 (Optional: hydraulic

hollow 37)

Travel

x/z – axis Max. travel

mm

X:240 Z: same as Max. turning length

x/z – axis rapid speed

m/min

X: 6   Z:10

Motor

Frequency conversion   handle  2 steps

KW

4

Stepless

KW

5.5

X/Z axis feeding motor



4/6

Tool post

Positions of the tool post

mm

N: 4 positions ( optional : 6,8 positions electrical)

Dimensions of tool rod

mm

20x20

Tailstock types

N: Handle  Optional: hydraulic

Dia./Travel/Taper of tailstock sleeve

mm

65/120/ MT: 5

750/1000/1500

Others

Size

mm

2450/2700/3200X1350x1600

weight

kg

2100/2300/2500

CNC system



GSK 980TDb,,

     5.5kW stepless speeds change frequency conversion300-3000r/min : or 2 steps 4KW frequency conversion by hand   L:75-750   H:250-2500r/min   Spindle bore ф52mm  /A2-6/MT6

    Full in one bed footNSK bearings、Φ200 hand chuck4-position tool posthand tailstock.
