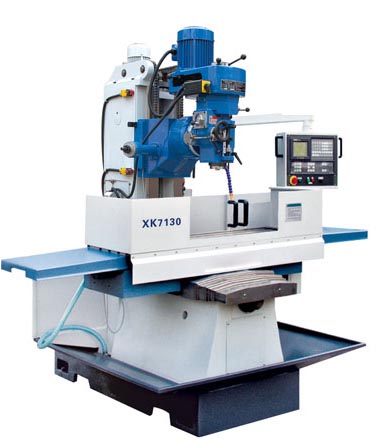

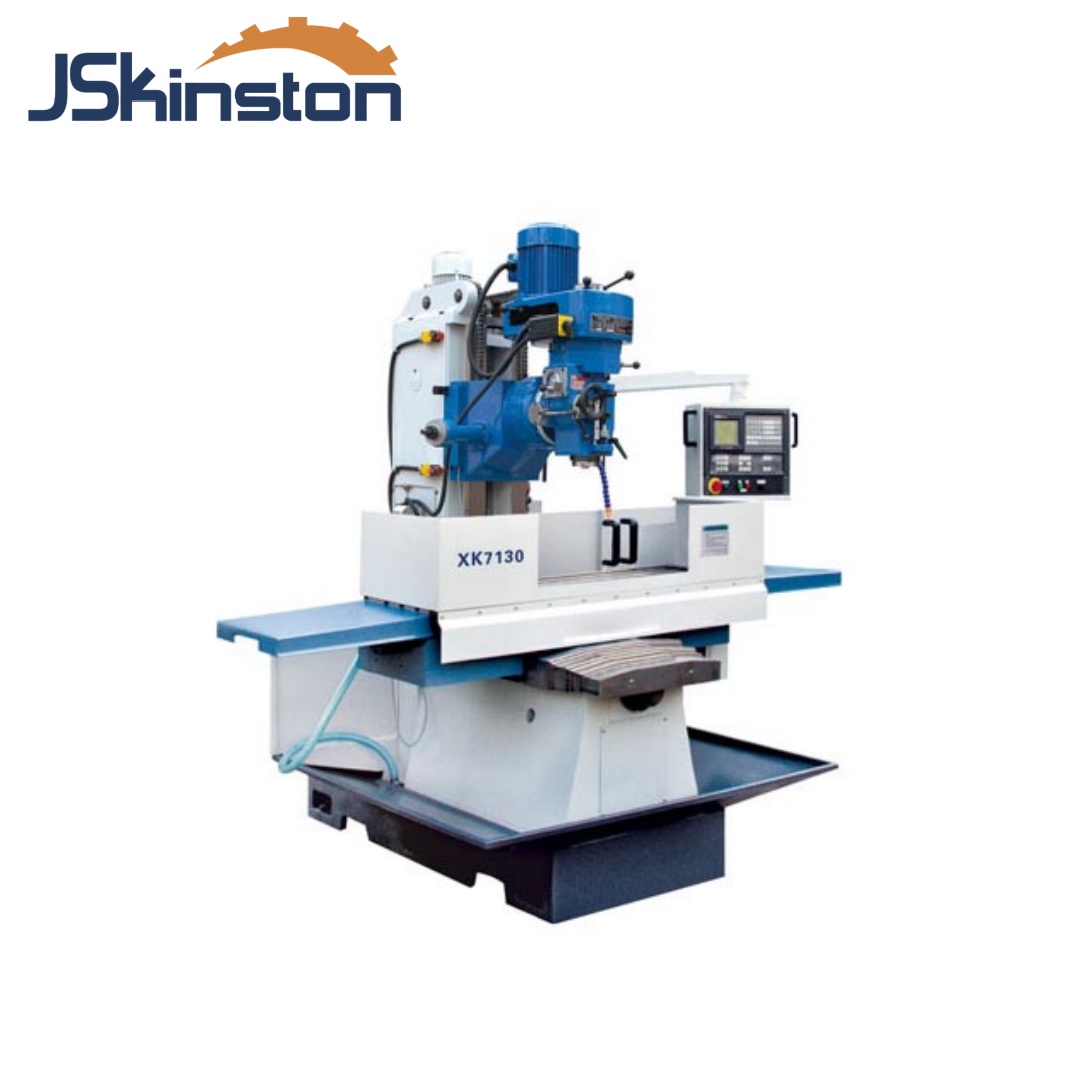

KingstonBrand Bed-type milling machine X7130
X7130, Bed-type milling machine. Variable speed. NT40 (ISO40) spindle taper.
Optional power feed device.
380V, 220V, etc. can be customized.
|
Specifications |
Unit |
X7130 |
||
|
Table size |
mm |
1370x300 |
1500x300 |
|
|
T-slot (No./Width/pitch) |
mm |
3/14/80 |
||
|
Longitudinal travel |
mm |
880 |
1000 |
|
|
Cross travel |
mm |
510 |
||
|
Vertical travel |
mm |
450 |
||
|
Spindle to table surface |
mm |
165-615 |
||
|
Table rapid feed speed (Z) |
mm/min |
1483 |
||
|
Spindle hole taper |
|
ISO40 |
||
|
Stroke of spindle quill |
mm |
127 |
||
|
Automatic spindle feed |
mm/rev |
0.04/0.08/0.15 |
||
|
Spindle speed range |
r/min |
43-3225 (variable) |
||
|
r/min |
65-4660 (16 steps) |
|||
|
Main motor power |
HP |
5 |
||
|
Overall size (LxWxH) |
mm |
1780x1460x2175 |
1900x1460x2175 |
|
|
Net weight |
kg |
2050 |
2100 |
|
