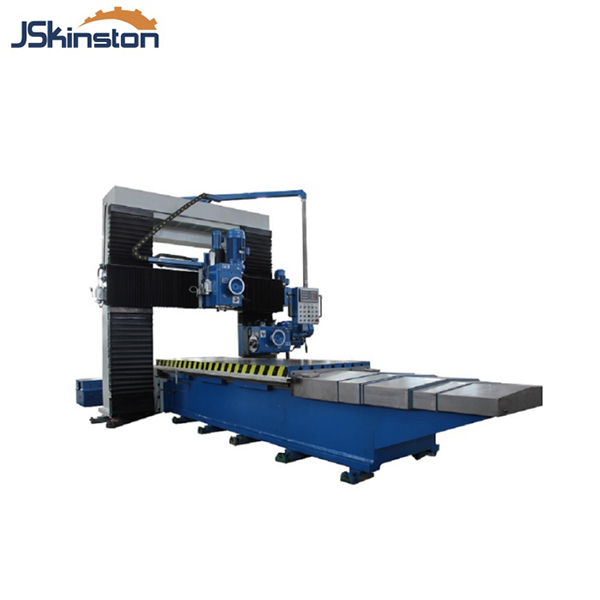

Kingston Brand Planer type- Gantry type
Special configuration:
Airtight cover; Digital read out raster ruler; Pneumatic tool locking mechanism
|
Specification |
Unit |
X2010 |
X2012 |
X2014 |
||
|
Max. length |
Length |
mm |
2000/3000/4000 |
|||
|
Width |
mm |
1300 |
1400 |
1800 |
||
|
Height |
mm |
1000 |
1000/1200 |
|||
|
Distance between columns |
mm |
1440 |
1600 |
1920 |
||
|
Table size |
Length |
mm |
2000/3000/4000 |
|||
|
Width |
mm |
1000 |
1250 |
1400 |
||
|
Table feeding speed |
Feed |
|
20-360 |
25-450 |
||
|
Rapid travel |
|
1050 |
1300 |
|||
|
Spindle taper |
|
7:24 ISO50 |
||||
|
Spindle speed step |
r/min |
82-505 |
||||
|
Swivel angle of milling head |
|
±35° |
||||
|
Feed rate of milling head |
mm |
(Along the cross rail):65/320/890; (Side milling head):50/265/730 |
||||
|
Power of spindle motor |
kw |
7.5 |
||||
|
Power of table motor |
kw |
4/5.5/7.5 |
5.5/7.5 (3000/4000) |
|||
|
Overall size |
Length |
mm |
4550/7000/9000 |
5000/7000/9000 |
||
|
Weight |
mm |
3200 |
3550 |
|||
|
Height |
mm |
2550 |
2950/3150 |
|||
