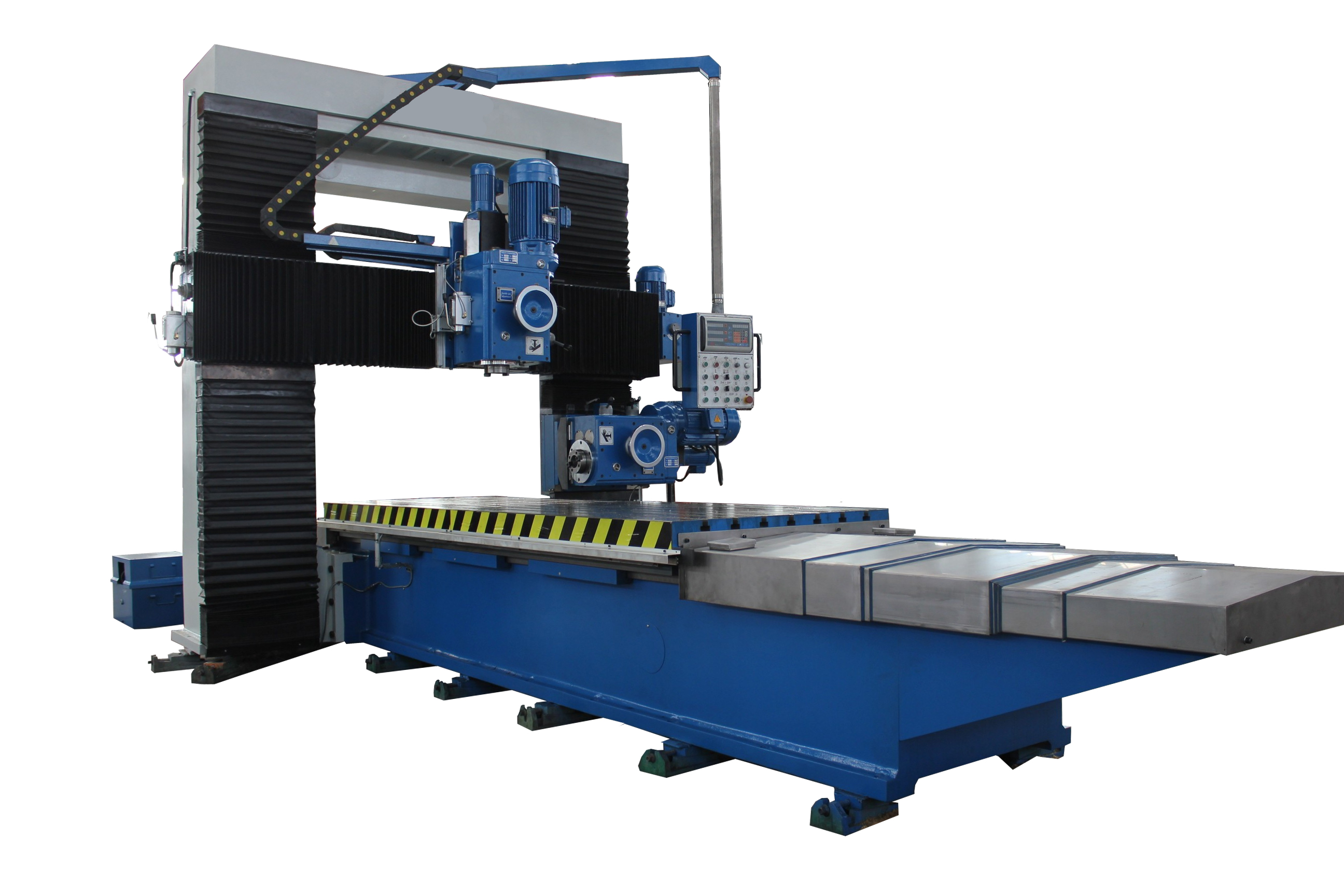

Kingston Brand Planer-type milling machine x2012

Kingston Brand Planer type- Gantry type X2012

Special configuration:

Airtight cover; Digital read out raster ruler; Pneumatic tool locking mechanism

Specification			Unit	X2010	X2012	X2014
Max. length	Length		mm	2000/3000/4000
	Width		mm	1300	1400	1800
	Height		mm	1000	1000/1200
Distance between columns			mm	1440	1600	1920
Table size	Length		mm	2000/3000/4000
	Width		mm	1000	1250	1400
Table feeding speed	Feed			20-360	25-450
	Rapid travel			1050	1300
Spindle taper				7:24 ISO50
Spindle speed step			r/min	82-505
Swivel angle of milling head				±35°
Feed rate of milling head			mm	(Along the cross rail):65/320/890; (Side milling head):50/265/730
Power of spindle motor			kw	7.5
Power of table motor			kw	4/5.5/7.5	5.5/7.5 (3000/4000)
Overall size		Length	mm	4550/7000/9000	5000/7000/9000
		Weight	mm	3200	3550
		Height	mm	2550	2950/3150
