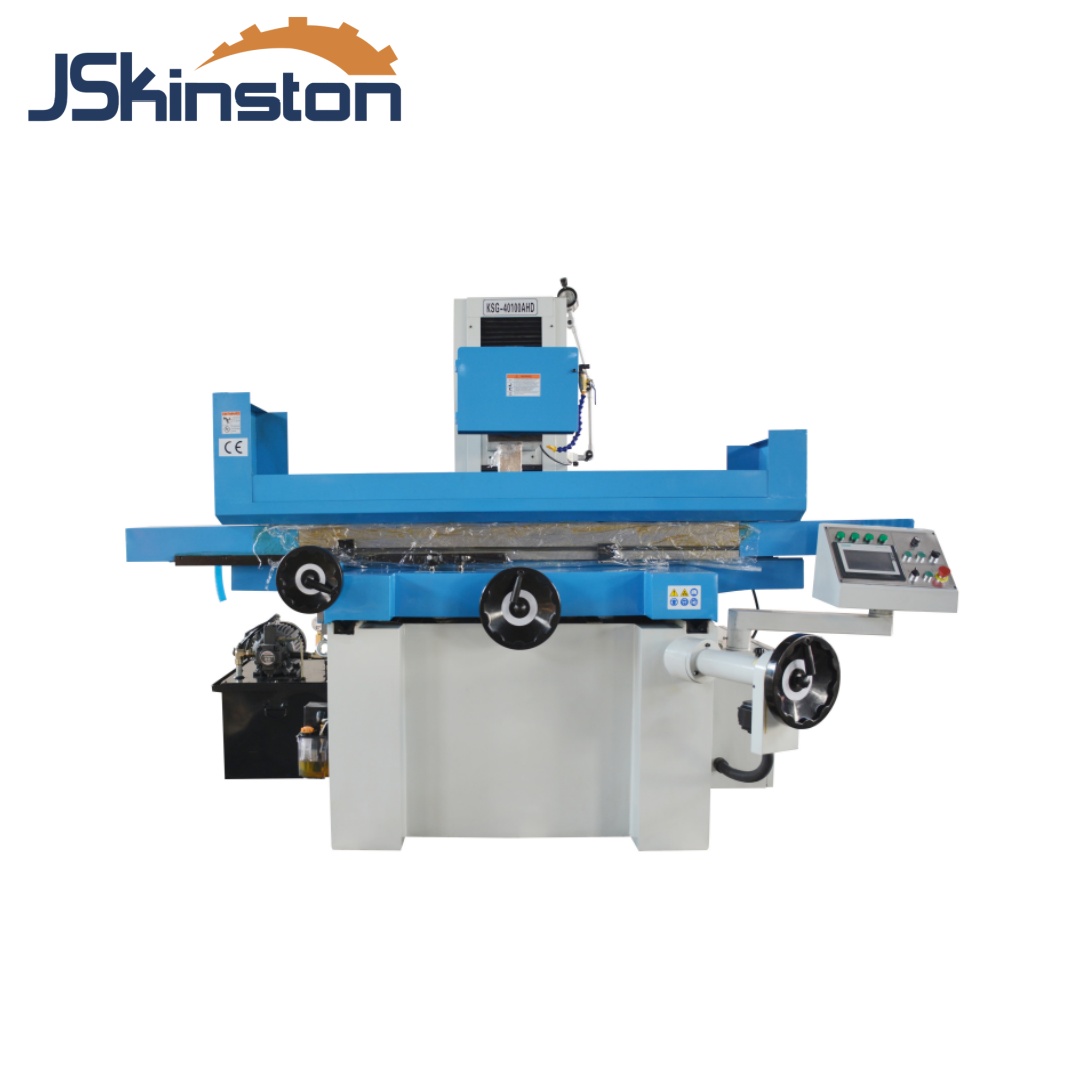

Kingston Brand High Precision Surface Grinding Machine SG40100 AH/AHR/AHD

Technical Parameters

Unit

SGA40100AH/AHR/AHD

Table maximum cutting area(L×W×H)

mm

406×1020

Max Longitudinal travel

mm

1130

Cross Travel

mm

450

Distance from spindle center to table

mm

580

Magnetic chuck size

mm

400×1000

Speed of table longitudinal movement

m/min

7-23

Table Transverse movement

Auto Feed

mm/min

0.1-8

Rapid Speed

mm/min

990

Feed of Handwheel

mm/div

0.02

Wheelhead vertical movement

Auto Feed

mm/stroke

H/R model 0.005/0.01/0.02/0.03/0.04/0.05 only for D model

Rapid Speed

mm/min

H model 610 (only for R model)480 (only for D model)

Feed of Handwheel

mm/div

0.005

Grinding Wheel

Speed

RPM

50HZ 1450

60HZ 1750

Size

mm

350*40*127

Spindle motor

kw

4/5.5

Hydraulic Motor

kw

2.2

Cooling pump

kw

0.09

Elevating Motor

kw

H model 0.25 R model 0.5 D model servo model

Cross Feed Motor

kw

0.04

Max Loading Capacity of Table(include magnetic chuck)

kg

600

Total Rate Power

kw

7.5/9

Height of Machine

mm

1890

Floor Space(L×W)

mm

4400×2400

Gross Weight

kg

3900

Package Dimension

mm

2960*2250*2220
