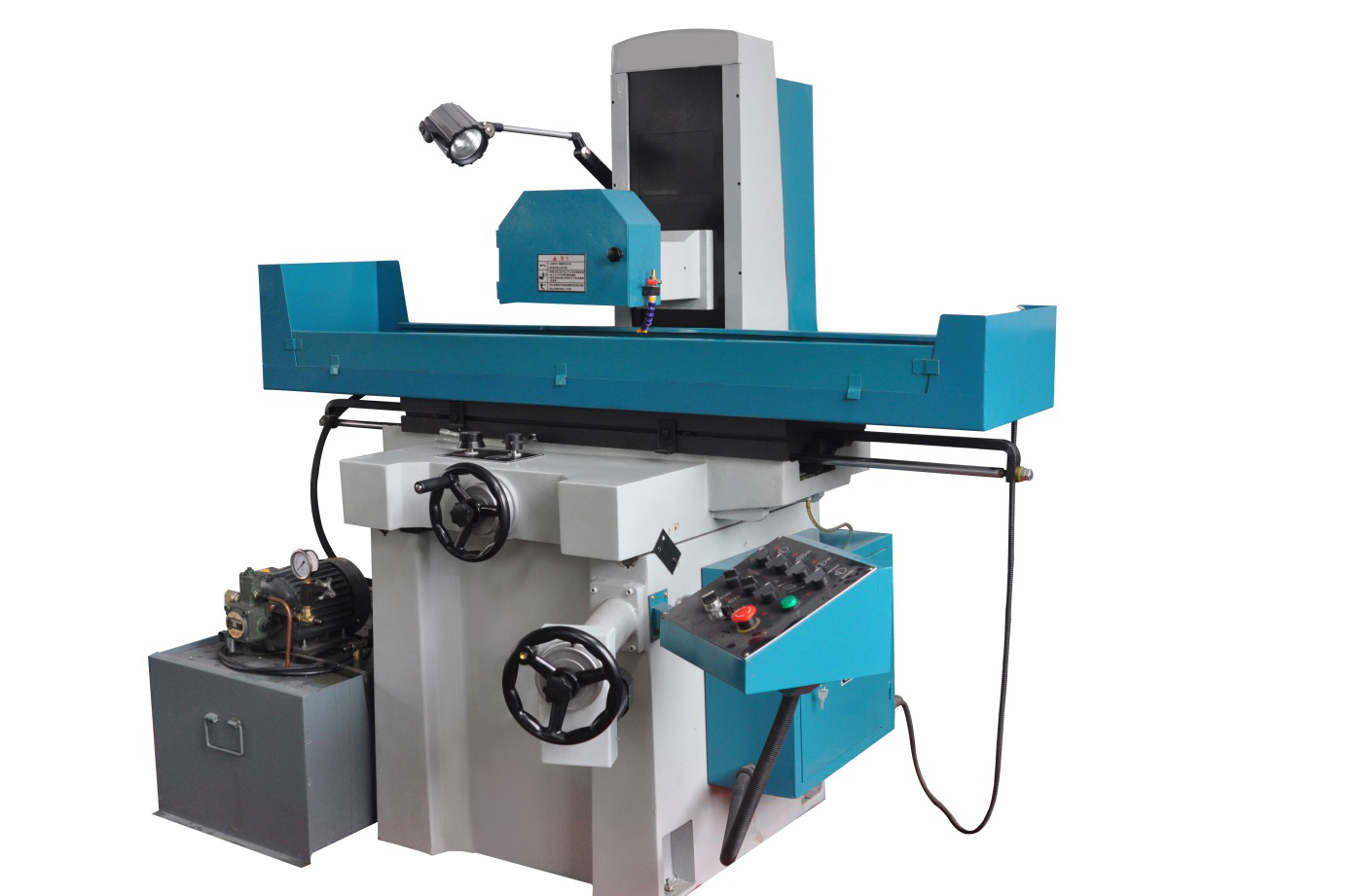

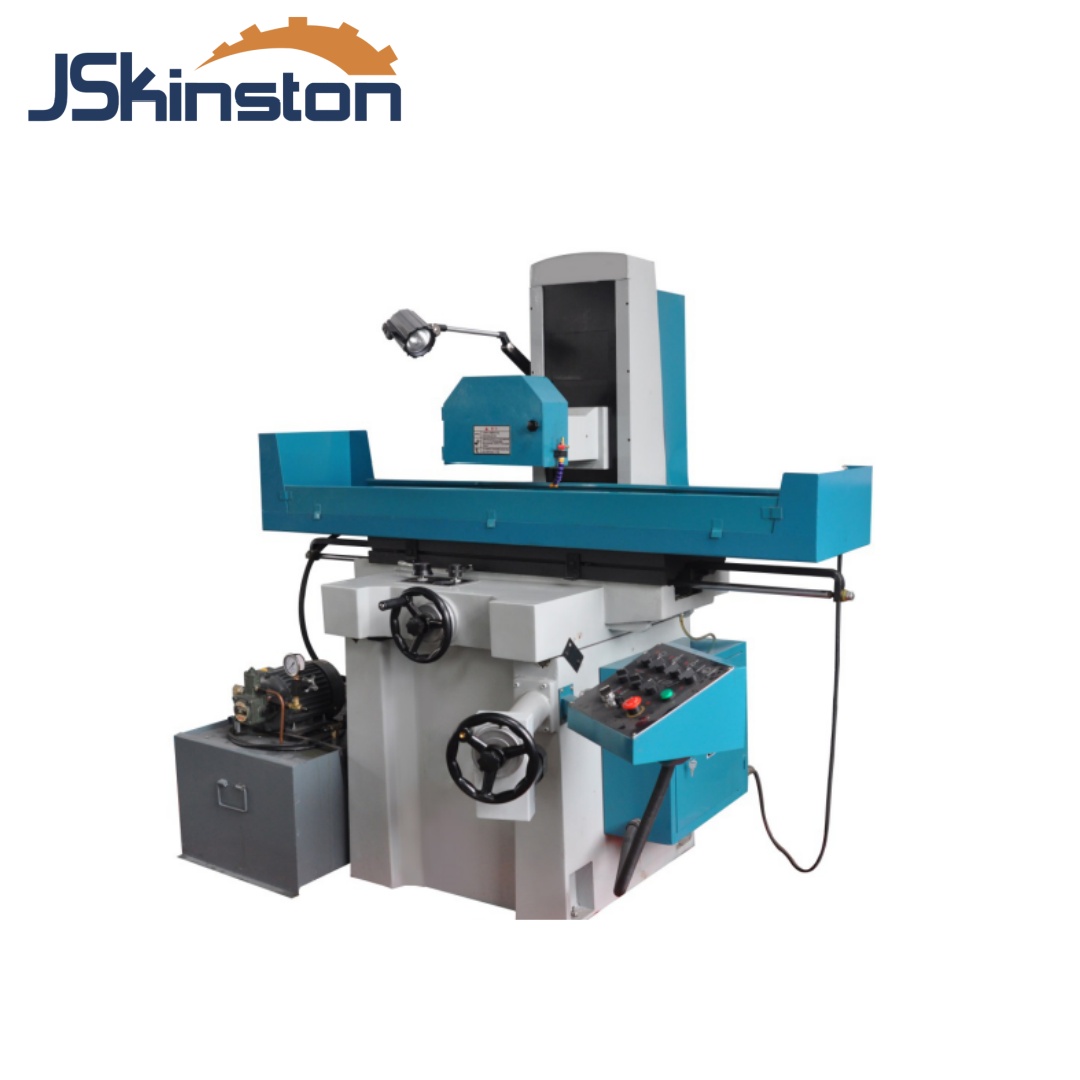

Kingston Brand Hydraulic Surface Grinder MY1224

Product description：Kingston Brand Hydraulic Surface Grinder MY1224 Features: 1. The machine is reasonable in structure, good rigidity,beautiful appearance, convenient operation. 2. Table horizontal movement adopts hy
Inquiry

Hydraulic Surface Grinder MY1224

Features:

1. The machine is reasonable in structure, good rigidity,beautiful appearance, convenient operation.

2. Table horizontal movement adopts hydraulic transmission, front and rear electric.

3. The main mechanical valve is a special valve grinder, is divided into two parts, the mechanical commutation control,throttle control. Throttle control part and unloading function, can realize the station start and stop.

4. Variety of flat grinding wheel or by modification of complex surface grinding, suitable for motor without grinding the feed, according to user needs with a permanent magnet sucker or electromagnetic sucker.

Hydraulic Surface Grinder MY1224:

Bench	Model		Unit	MY1224
	Table Size		mm	600×300
	Max. Longitudinal travel of the table		mm	640×320
	Table Max. Cutting area		mm	760×320
	Number of T-Slot		mm	1×14
The grinding head	Max.distance of table surface to spindle center		mm	490
	Wheel size		mm	250×25.4×76.2
	The Speed of spindle		m/min	1440
The amount of feed	Table Longitudinal speed(stepless)		/mi	3-20
	Table horozontal feed amount	Continues (variable speed )	mm	150
		Intermittent (stepless)		0-5
		The handwheel rates		4
		Handwheel each grid		0.02
	Vertical handwheel feed	The handwheel rates	mm/min	2
		Handwheel each grid		0.01
Motor power	Spindle motor		kw	232
	Cooling motor		w	40
Reversing feeder	Hydraulic motor		KW	1.5
	Working pressure		mpa	3
	Fuel tank capacity		L	80
	The maximum flow		L/min	18
Working precision	The machined surface of the base of paralelism		mm	300/0.004
	Surface Roughness		μm	Ra0.032
Weight of machine	Net		T	1.5
	Cross		T	1.65
