Kingston Brand Horizontal knee-type milling machine XL6030

Product Item : M10
Product description：The XL6030,horizontal knee-type milling machine from Kingston Machinery is the perfect mill for anyone just getting into machining. It carries on the tradition of a well built economical machine tha
Inquiry

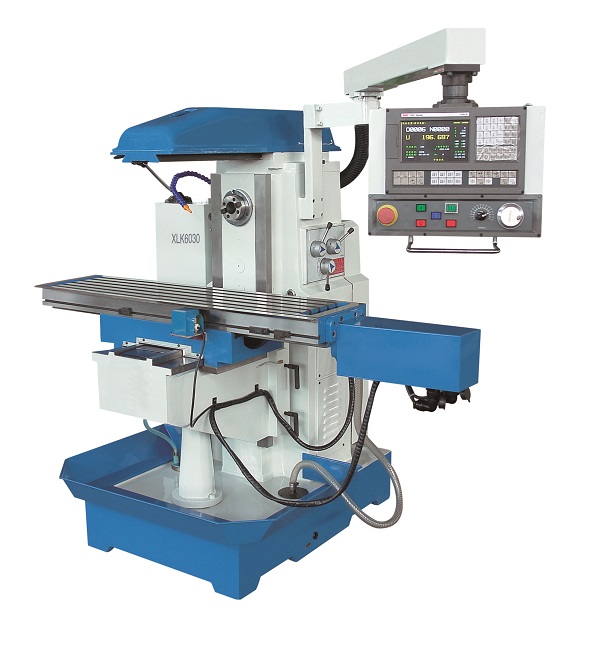

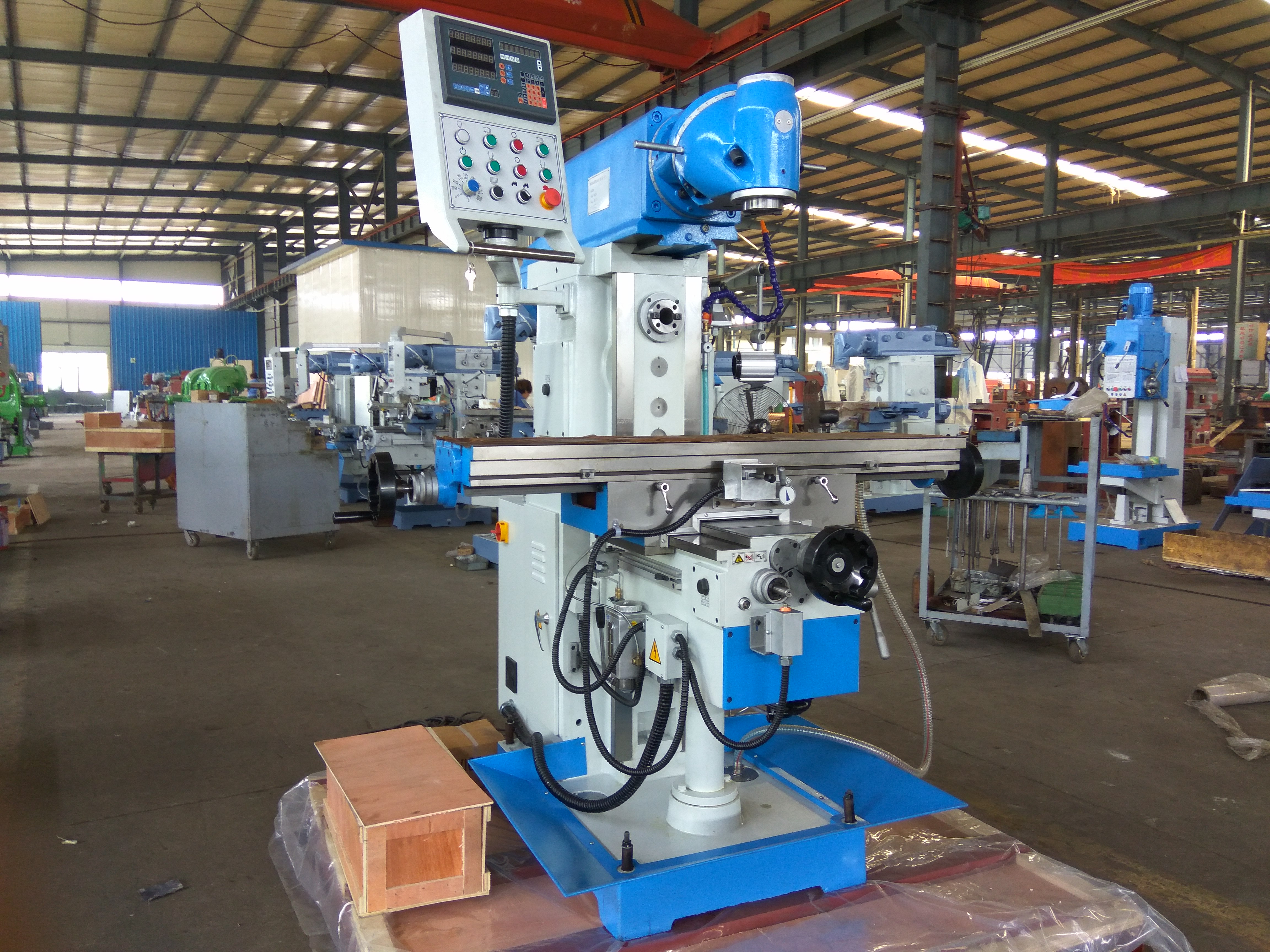

Kingston Brand Horizontal knee-type milling machine XL6030

The XL6030,horizontal knee-type milling machine from Kingston Machinery is the perfect mill for anyone just getting into machining. It carries on the tradition of a well built economical machine that will do everything you could ask and more. 220 volt, 380 volt and other customized voltage allow being run just about anywhere, making it a good fit for just about any size fabricator or machine shop.

·Horizontal Knee-type

·Driven by AC servo motor

·Table automatic feed on X,Y,Z

·Automatic rapid feed X,Y,Z

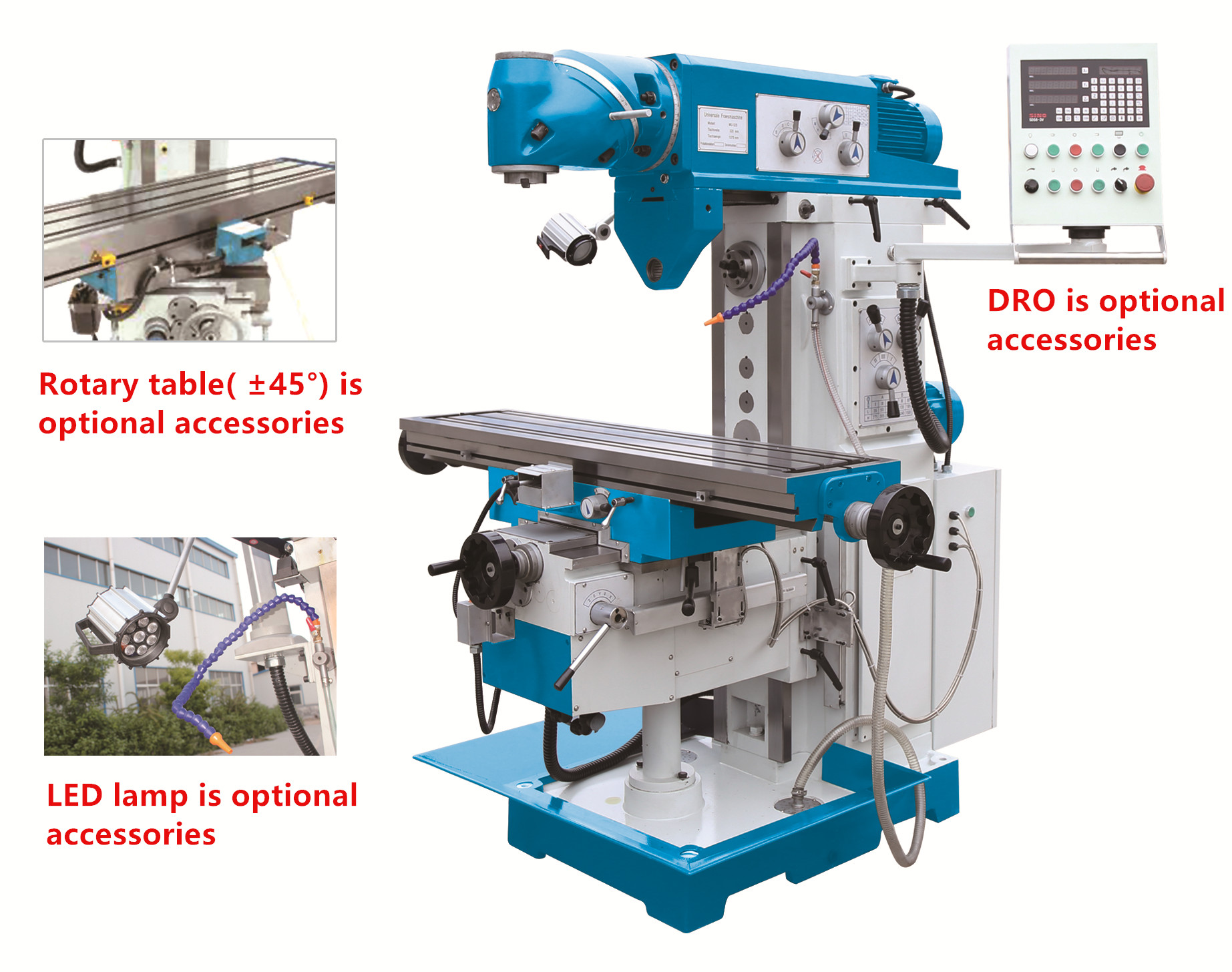

·±45°rotary table can be configured

·Digital Read Out for choice

Specifications	Unit	XL6030	XL6030A	XL6030B	XL6030C
Table size	mm	1270x300	1370x300	1270x300	1370x300
Table travel (X/Y/Z)	mm	720/300/400	820/300/400	900/380/400	1000/380/400
Spindle taper		7:24 ISO40
Rapid speed of table (X/Y/Z)	mm/min	1000/1000/750
Table feed (X/Y/Z)	mm/min	Variable
T-slots (NO./Width/Pitch)	mm	3/14/80
Spindle speed range	r/min	12 steps 35-1500
Spindle nose to table surface	mm	75-475
Spindle axis to column guideway	mm	155
Max. rotary angle of table	°
Main motor	kw	3
Torque of X/Y/Z axis AC servo motor	N.m	10
Overall size	mm	1720x1680x1730	1820x1680x1730	1720x1680x1730	1820x1680x1730
Net weight	kg	1500	1550	1550	1600

Standard Accessories

Item	Name	Specification	Qty
1	Vertical milling head		1
2	Allen Wrench	5 、6、10	1
3	Fixed Wrench	1719、2224、32*36	1
4	Middle sleeve	7:24; ISO40-MS4	1
5	Handle		1
6	Milling Arbor	7:24 Iso40 Φ27	1 Set
7	Milling arbor support		1
8	Draw Bar	M16 × 480	1
9	Nut、Washer	M16	2
10	Operation Manual		1
11	Coolant system with electric motor		1
12	Auto feed and fast feed on XYZ		1
13	Chip tray		1
