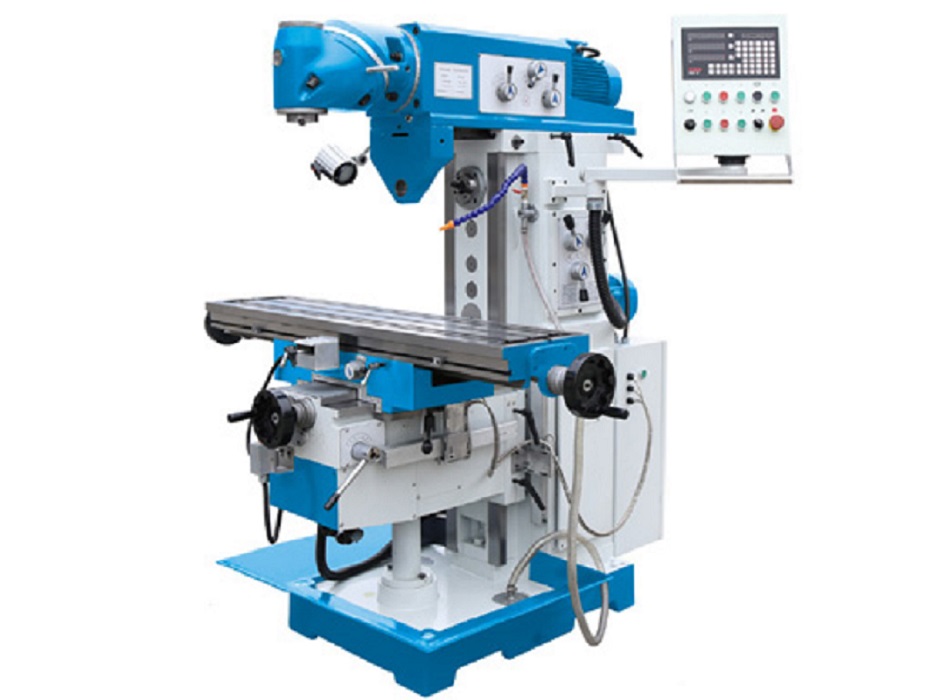

Kingston Brand Ram milling machine XQ6432

Product Item : M11
Product description：Kingston Brand The XQ6432, ram type milling machine from Kingston Machinery is the perfect mill for anyone just getting into machining. It carries on the tradition of a well built economical machin
Inquiry

Kingston Brand Ram milling machine XQ6432

The XQ6432, ram type milling machine from Kingston Machinery is the perfect mill for anyone just getting into machining. It carries on the tradition of a well built economical machine that will do everything you could ask and more. 220 volt, 380 volt and other customized voltage allow being run just about anywhere, making it a good fit for just about any size fabricator or machine shop.

It can mill any angle surface through front half-sphere by swiveling milling head.

Table 3 axes with ball screws, high precision.

Table feeding with 3 separate servo motors, variable speeds, not interfere each other, high reliability, easy to operate.

Mechanical change speeds in headstock, powerful milling.

Table with an extra supporting column, big load, high accuracy.

Rotary table (±45°) is optional accessories

DRO is optional accessories

LED lamp is optional accessories

Specification			Unit	XQ6432		XQ6432A		XQ6432B		XQ6432C
Table size			mm	1270x320		1370x320		1270x320		1370x320
Table travel (X/Y/Z)			mm	720/300/400		820/300/400		900/380/400		1000/380/400
Rapid speed of table (X/Y/Z)			mm/min	1000/1000/750
Spindle taper				7:24 ISO40
Table feed (X/Y/Z)			mm/min	No finite
Spindle center to table surface			mm	75-475
Spindle nose to table surface			mm	260-660
Horizontal spindle center line to arm surface			mm	180
Spindle speed range			r.p.m	(V)11 steps 45-1660; (H) 12steps 35-1500
T-slots (NO./width/pitch)			mm	3/14/80
Arm travel			mm	400
Main motor power			kw	2.2 or 3 (V) 3(H)
Torque of X/Y/Z axis AC servo motor			n.m	10
Cooling pump motor power			W	40
Flow of cooling pump			L/m	12
Overall size			mm	1720x1680x1860		1820x1680x1860		1720x1680x1860		1820x1680x1860
Net weight			kg	1875		1925		1925		1975
Rotary table can be ordered at special request
Model	Table size	Max table travel-X/Y/Z			Max. rotary angle of table		Spindle center line to table surface		Spindle nose to table surface
XQ6432W	1270x320	750x300x400			±45°		35-435		220-620
XQ6432AW	1370x320	820x300x400
XQ6432BW	1270x320	900x380x400
XQ6432CW	1370x320	1000x380x400
