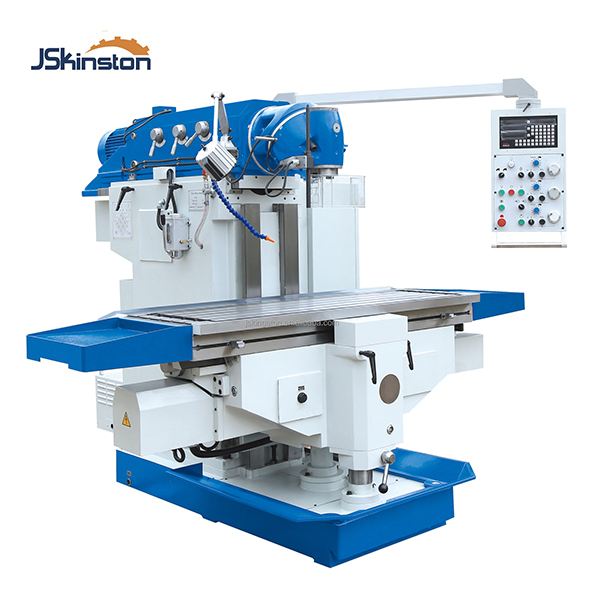

Kingston Brand X5750 Ram Milling Machine

Product Item : M12
Product description：Kingston Brand The X5750, ram type milling machine from Kingston Machinery is the perfect mill for anyone just getting into machining. It carries on the tradition of a well built economical machi
Inquiry

Kingston Brand

Kingston Brand X5750 Ram Milling Machine

The X5750, ram type milling machine from Kingston Machinery is the perfect mill for anyone just getting into machining. It carries on the tradition of a well built economical machine that will do everything you could ask and more. 220 volt, 380 volt and other customized voltage allow being run just about anywhere, making it a good fit for just about any size fabricator or machine shop.

It can mill any angle surface through front half-sphere by swiveling milling head.

Table 3 axes with ball screws, high precision.

Table feeding with 3 separate servo motors, variable speeds, not interfere each other, high reliability, easy to operate.

Mechanical change speeds in headstock, powerful milling.

Table with an extra supporting column, big load, high accuracy.

Rotary table (±45°) is optional accessories

DRO is optional accessories

LED lamp is optional accessories

Specifications	Unit	X5750	X5750A
Table size	mm	500x1600	500x2000
T-slots(NO./Width/Pitch)	mm	5/18/80
Table travel (X/Y/Z)	mm	1200/700/500	1400/700/500
Swivel angle of milling head		360°
Spindle taper		ISO50
Spindle speed range	r.p.m	(27)30-2050
Table feed (X/Y/Z)	mm/min	10-1000/10-1000/5-500
Table rapid speed		2200/2200/1100
Spindle nose to table surface	mm	50-550
Spindle center line to column	mm	28-728
Main motor power	kw	7.5
Feed motor	kw	AC servo motor X/Y:15NM;Z:18NM
Max. load	kg	1800
Overall size	mm	2625x2460x2080	2625x2860x2080
Weight	kg	5000	5500
