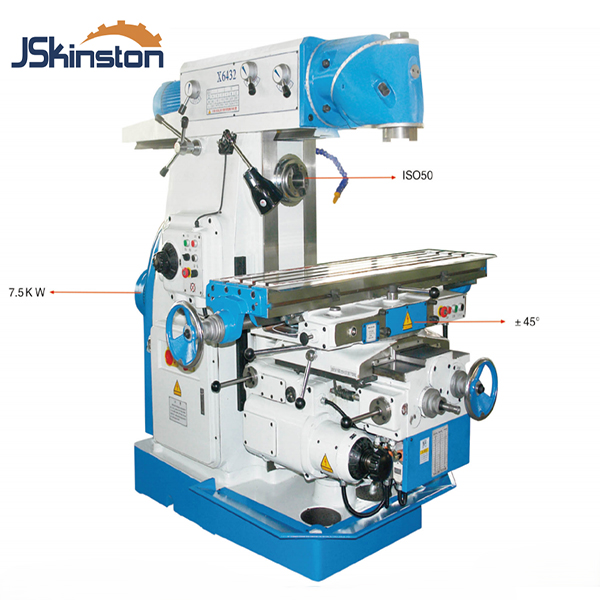

Kingston Brand Ram Milling Machine XL6432

Product Item : M15
Product description：Kingston Brand Ram Milling Machine XL6432 It can mill any angle surface through front half-sphere by swiveling milling head. Table 3 axes with ball screws, high precision. Table feeding with 3 sepa
Inquiry

Kingston Brand Ram Milling Machine XL6432

It can mill any angle surface through front half-sphere by swiveling milling head.

Table 3 axes with ball screws, high precision.

Table feeding with 3 separate servo motors, variable speeds, not interfere each other, high reliability, easy to operate.

Mechanical change speeds in headstock, powerful milling.

Table with an extra supporting column, big load, high accuracy.

Rotary table (±45°) is optional accessories

DRO is optional accessories

LED lamp is optional accessories

Specification	Unit	XL6432	XL6432C	XL6432CL
Table size	mm	1325x320		1600x320
Table travel (X/Y/Z)	mm	750/320/460	1100/320/450	1300/320/450
Table feed (X/Y/Z)	mm/min	30-750/20-500/15-375
Spindle taper		7:24 ISO50 (H) 7:24 ISO 50(V)
Arm travel	mm	550
Spindle nose to table surface	mm	196-656	196-646
Horizontal nose to table surface	mm	20-480	20-470
Spindle axis to arm surface	mm	200
Spindle speed range	r.p.m	12 steps 60-1750(V) 60-1800(H)
T-slots(NO./Width/Pitch)	mm	3/18/70
Main motor power	kw	5.5(H) 4(V)
3 to feed AC servo motor torque	N.m	10
Overall size	mm	1800x2100x2000	2245x2100x2000	2520x2100x2000
Net weight	kg	2635	2700	2750
