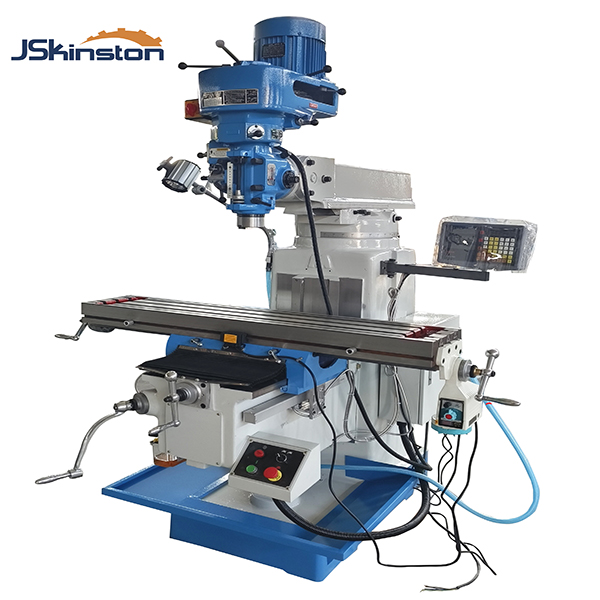

Kingston Brand X6332-milling-machine

Specification

Unit

XL6332

XL6332C

XL6332CL

Table size

mm

1325x320

1600x320

Table travel (X/Y/Z)

mm

750/320/460

1100/320/450

1300/320/450

Table feed (X/Y/Z)

mm/min

30-750/20-500/15-375

Table rapid speed (X/Y/Z)

mm/min

1200/800/600

Spindle taper

7:24 ISO50(H) 7:24 ISO40(V)

Stroke of spindle quill

mm

127(V)

Spindle nose to table surface

mm

200-660

200-650

Horizontal spindle center line to table surface

mm

20-480

20-470

Horizontal spindle center line to arm surface

mm

245

Spindle speed range

r.p.m

16 steps 60-1800 (H) 8steps 65-4660(V)

T-slots (NO./width/pitch)

mm

3/18/70

Arm travel

mm

550

Main motor power

kw

5.5(H) 3.7(V)

Torque of X/Y/Z axis AC servo motor

n.m

10

Overall size

mm

1800x2100x2500

2245x2100x2500

2520x2100x2500

Net weight

kg

2685

2750

2800
