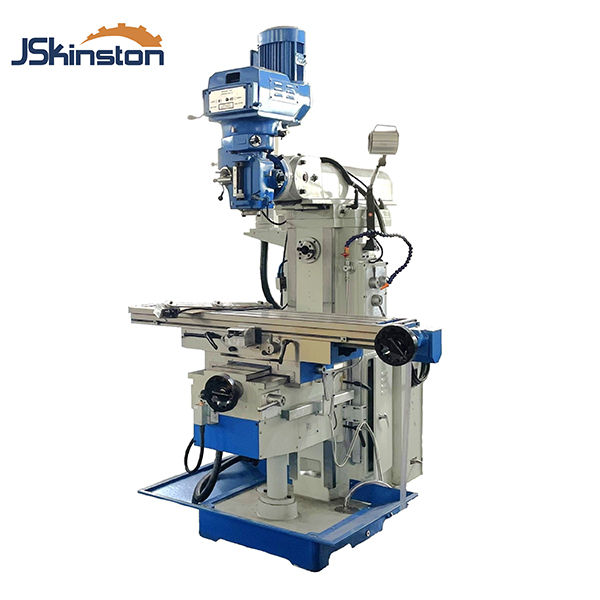

Kingston Brand Turret milling machine XL6336

Product Item : M6
Product description：High speed milling head (5HP) •Max. vertical travel: 450mm •Driven by servo motor •Table automatic feed on X,Y,Z •Automatic rapid feed X,Y,Z •Easy control •Rotary table can be ordered at special
Inquiry

Kingston Brand Turret milling machine XL6336

·High speed milling head (5HP)

·Max. vertical travel: 450mm

·Driven by servo motor

·Table automatic feed on X,Y,Z

·Automatic rapid feed X,Y,Z

·Easy control

·Rotary table can be ordered at special request

Specification	Unit	XL6336	XL6336C	XL6336CL
Table size	mm	1325x360		1600x360
Table travel (X/Y/Z)	mm	750/320/460	1100/320/450	1300/320/450
Table feed (X/Y/Z)	mm/min	30-750/20-500/15-375
Table rapid speed (X/Y/Z)	mm/min	1200/800/600
Spindle taper		7:24 ISO50 (H) 7:24 ISO40 (V)
Stroke of spindle quill	mm	127(V)
Spindle nose to table surface	mm	200-660	200-650
Horizontal spindle center line to table surface	mm	20-480	20-470
Horizontal spindle center line to arm surface	mm	245
Spindle speed range	r.p.m	16 steps 60-1800(H); 8 steps 65-4660(V)
T-slots (NO./width/pitch)	mm	3/18/80
Arm travel	mm	550
Main motor power	kw	5.5(H); 3.7(V)
Torque of X/Y/Z axis AC servo motor	n.m	10
Overall size	mm	1800x2100x2500	2245x2100x2500	2520x2100x2500
Net weight	kg	2710	2780	2850
