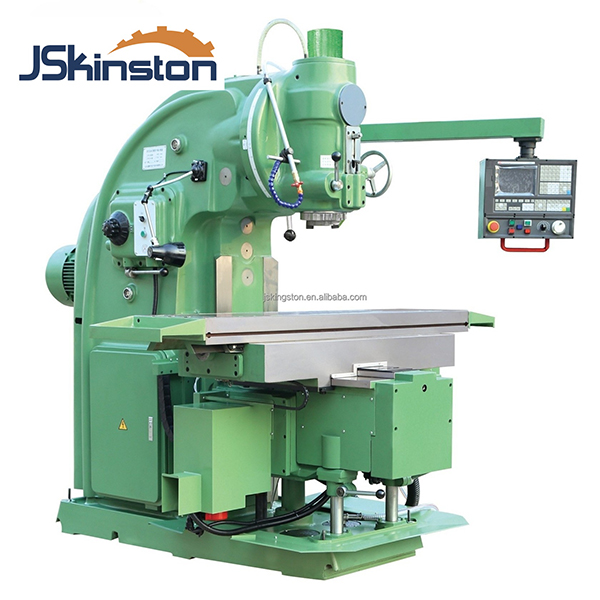

Kingston Brand Vertical knee-type milling machine XL5030

Product Item : M5
Product description： Kingston Brand The XL5030 vertical mill from Kingston Machinery is the perfect mill for anyone just getting into machining. It carries on the tradition of a well built economical machine that wil
Inquiry

Kingston Brand Vertical knee-type milling machine XL5030

The XL5030 vertical mill from Kingston Machinery is the perfect mill for anyone just getting into machining. It carries on the tradition of a well built economical machine that will do everything you could ask and more. 220 volt, 380 volt and other customized voltage allow being run just about anywhere, making it a good fit for just about any size fabricator or machine shop.

·Knee-type

·Driven by AC servo motor

·Table automatic feed on X,Y,Z

·Automatic rapid feed X,Y,Z

·±45°swivel table can be configured

·Digital Read Out for choice

Specification	Unit	XL5030	XL5030A	XL5030B	XL5030C
Table size	mm	1270x300	1370x300	1270x300	1370x300
Table travel(X/Y/Z)	mm	720/300/400	820/300/400	900/380/400	1000/380/400
Spindle nose to work surface	mm	35-435
Spindle hole taper		7:24 ISO40
Rapid speed of table (X/Y/Z)	mm/min	1000/1000/750
Table feed (X/Y/Z)	mm/min	Variable
T-slots(NO./Width/Pitch)	mm	3/14/80
Spindle speed range	r/min	12 steps 35-1500
Stroke of spindle quill	mm	70
Spindle axis to column guideway	mm	285
Swivel angel of vertical milling head		±30°
Main motor power	kw	3
Torque of X/Y/Z axis AC servo motor	N.m	10
Overall size	mm	1720x1680x1810	1820x1680x1810	1720x1680x1810	1820x1680x1810
Net weight	kg	1500	1550	1550	1600
