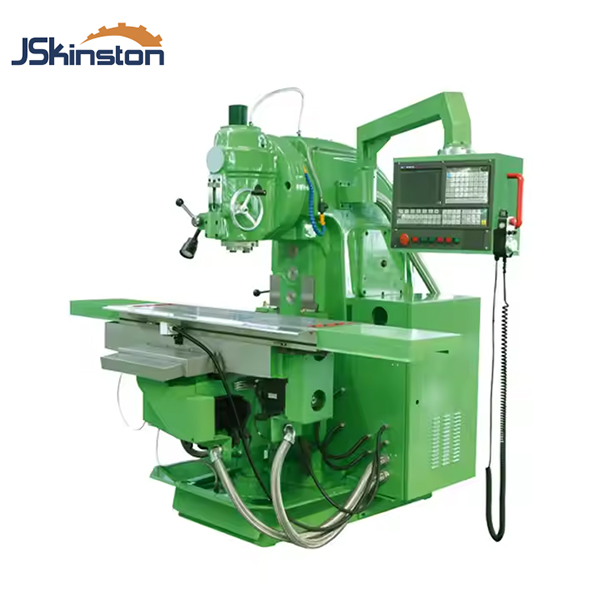

Kingston Brand Vertical Mill XL5036

Product Item : M1
Product description：The XL5036 vertical mill from Kingston Machinery is the perfect mill for anyone just getting into machining. It carries on the tradition of a well built economical machine that will do everything yo
Inquiry

Kingston Brand Vertical Mill XL5036

The XL5036 vertical mill from Kingston Machinery is the perfect mill for anyone just getting into machining. It carries on the tradition of a well built economical machine that will do everything you could ask and more. 220 volt, 380 volt and other customized voltage allow being run just about anywhere, making it a good fit for just about any size fabricator or machine shop.

·Knee-type

·Driven by AC servo motor

·Table automatic feed on X,Y,Z

·Automatic rapid feed X,Y,Z

·±45°swivel table can be configured

·Digital Read Out for choice

Specification	Unit	XL5036	XL5036C	XL5036CL
Table size	mm	1325x360		1600x360
T-slots (No./Width/Pitch)		3/18/80
Longitudinal travel	mm	750	1100	1300
Cross travel	mm	320
Vertical travel	mm	460	450
Spindle taper		7:24 ISO50
Spindle speed range	r.p.m	50-1475
Spindle speed step	steps	12 steps
Spindle travel	mm	70
Spindle nose to table surface	mm	50-510	50-500
Spindle axis to column guideway	mm	378
Torque of X/Y/Z axis AC servo motor	N.m	10
Main motor power	kw	5.5
Overall dimensions (LxWxH)	mm	1800x2100x2150	2245x2100x2150	2520x2100x2150
Net weight	kg	2800	2900	3000
