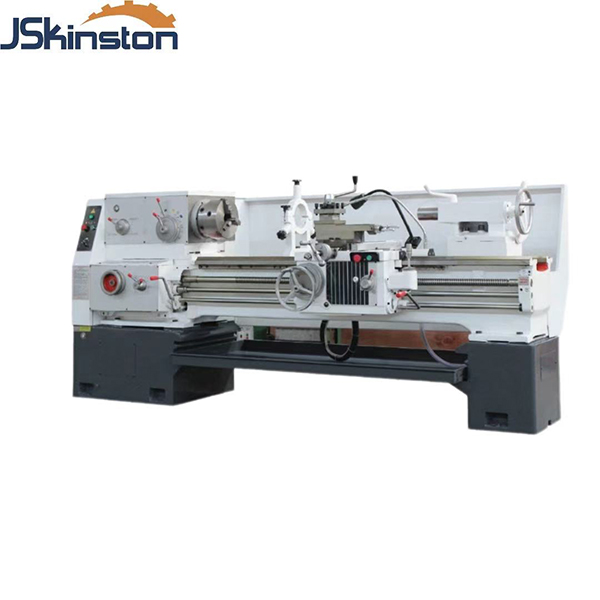

Kingston Brand Universal Lathe C6280

Product Item : L5
Product description：Kingston Brand Universal Lathe C6280
Inquiry

Kingston Brand C6280-3000MM HORIZONTAL LATHE

Model	C6280/3000
Max.swing over bed	800mm (31-1/2”)
Max.swing over cross slide	570mm (22-7/16”)
Max.swing in gap diameter	1035mm (40-3/4”)
Distance between centers	1500(60”)/2000(80”)
Valid length of gap	250mm (10”)
Width of bed	400mm (15-13/16”)
Spindle nose	D1-8
Spindle bore	105mm (4-1/8”)
Taper of spindle bore	Ø113 (1:20)
Range of spindle speed	25~1600 r/min
Compound rest travel	230mm (9-1/8”)
Cross slide travel	420mm (16-17/32”)
Max. section of tool	25×25mm (1”×1”)
Lead screw thread	12mm or 2T.P.I
Longitudinal feeds range	0.044~1.48mm/rev (0.00165”~0.0550”/rev)
Cross feeds range	0.022~0.74mm/rev (0.00083”~0.02774”/rev)
Threads metric pitches	54 kinds, 0.45~120mm
Threads imperial pitches	54 kinds, 7/16~80T.P.I.
Threads diametral pitches	42 kinds, 7/8~160DP
Threads module pitches	46 kinds, 0.25~60MP
Quill diameter	90mm (3-1/2”)
Quill travel	235mm (9-1/4”)
Quill taper	No.5 Morse
Main motor power	7.5kw(10HP) 3PH
Coolant pump power	0.1kw(1/8HP) 3PH
Packing size (L×W×H)	4740×1140×1910mm
Gross weight	4500kgs

Accessories:

STANDARD ACCESSORIES:

Clutch，rapid feed, Lead screw cover，casting stand, Foot brake，Lamp，Coolant system，Steady rest，Follow rest，Face plate，Three jaw chuck，Four jaw chuck，Sleeve, Dead center, Toolbox & tools 1set.

SPECIAL ACCESSORIES:

-CE requirement: Tool post guard

Chuck guard with interlock switch (Siemens)

-Add big electrical box

-SINO digital readout: 1.5 meter and 2-axis

1.5 meter and 3-axis

-Live center point: MT5

-Taper attachment

-Frequency conversion (with DELTA frequency converter and Variable frequency motor) (Variable frequency motor/ frequency converter: 7.5KW/11KW).

-Easson CSS digital readout: 1.5 meter and 3-axis
