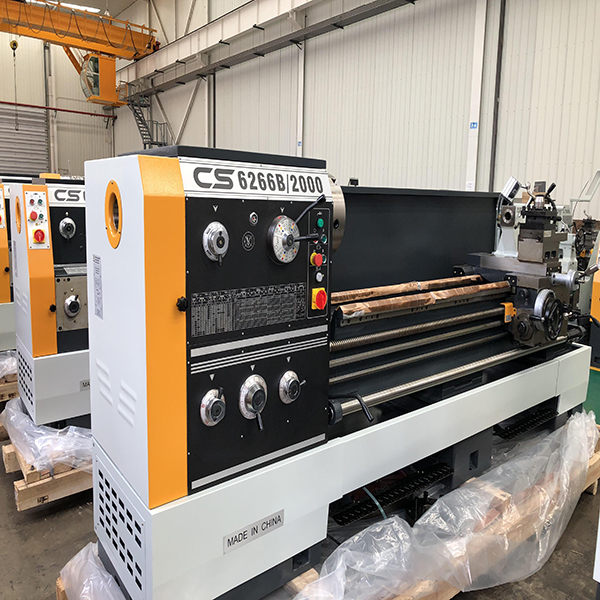

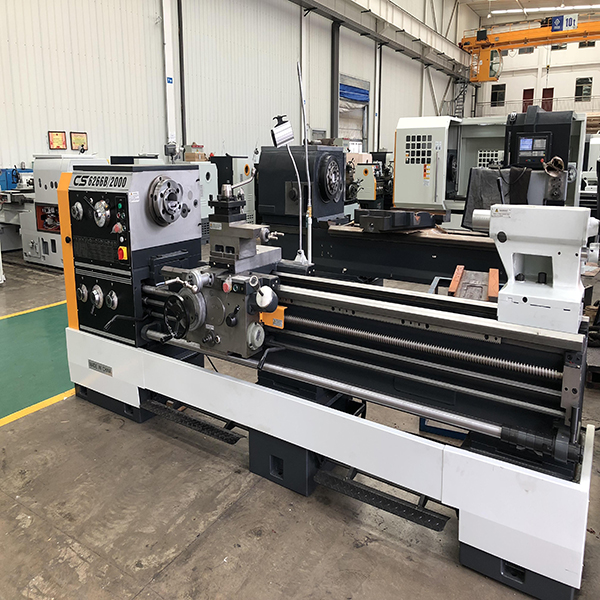

Kingston Brand Universal Lathe C6266

Product Item : L4
Product description：Kingston Brand Universal Lathe C6266
Inquiry

HORIZONTAL LATHE

MACHINE TOOL TYPE	C6266
CAPACITY
Swing Over Slide	Φ660mm
Swing Over Cross Slide	Φ440mm
Swing in Gap Diameter	Φ900mm
Length of Gap	250mm
Center Height	330mm
Distance Between Centers	3000mm
Width of Bed	400mm
Max. Section of Tool	25mm × 25mm
Max. Travel of Cross Slide	368mm
Max. Travel of Compound Rest	230mm
HEADSTOCK
Spindle Bore	Φ105mm
Spindle Nose	D1-8
Taper of Spindle Bore	Φ113mm(1:20)/MT5
Spindle Speed Number	16
Range of Spindle Speed	25～1600rpm
FEEDS AND THREADS
Leadscrew Pitch	Φ40mm×2T.P.I. or Φ40mm×12mm
Inch Threads Range	7/16～80T.P.I. (54 kinds)
Metric Threads Range	0.45～120mm (54 kinds)
Diametrical Pitches Range	7/8～160DP (42 kinds)
Module Pitches Range	0.25～60MP (46 kinds)
Longitudinal Feeds Range in Metric Lead Screw	0.044～1.48mm/rev (25 kinds)
Longitudinal Feeds Range in Inch Lead Screw	0.00165"～0.05497"/rev (25 kinds)
Cross Feeds Range in Metric Lead Screw	0.022～0.74mm/rev (25 kinds)
Cross Feeds Range in Inch Lead Screw	0.00083"～0.02774"/rev (25 kinds)
TAILSTOCK
Quill travel	235mm
Quill diameter	Φ90mm
Quill taper	MT5
MOTOR
Main motor power	7.5kW(10HP)
Coolant pump power	0.09kW (1/8HP)
DIMENSION AND WEIGHT
Overall Dimension (L×W×H)	3210×1230×1600
Packing Size (L×W×H)	3240×1140×1840
Net Weight	3500kg
Gross Weight	4000kg

Accessories:

STANDARD ACCESSORIES:

Clutch，rapid feed, Lead screw cover，casting stand, Foot brake，Lamp，Coolant system，Steady rest，Follow rest，Face plate，Three jaw chuck，Four jaw chuck，Sleeve, Dead center, Toolbox & tools 1set.

SPECIAL ACCESSORIES:

-CE requirement: Tool post guard

Chuck guard with interlock switch (Siemens)

-Add big electrical box

-SINO digital readout: 1.5 meter and 2-axis

1.5 meter and 3-axis

-Live center point: MT5

-Taper attachment

Frequency conversion (with DELTA frequency converter and Variable frequency motor) (Variable frequency motor/ frequency converter: 7.5KW/11KW).

-Easson CSS digital readout: 1.5 meter and 3-axis
