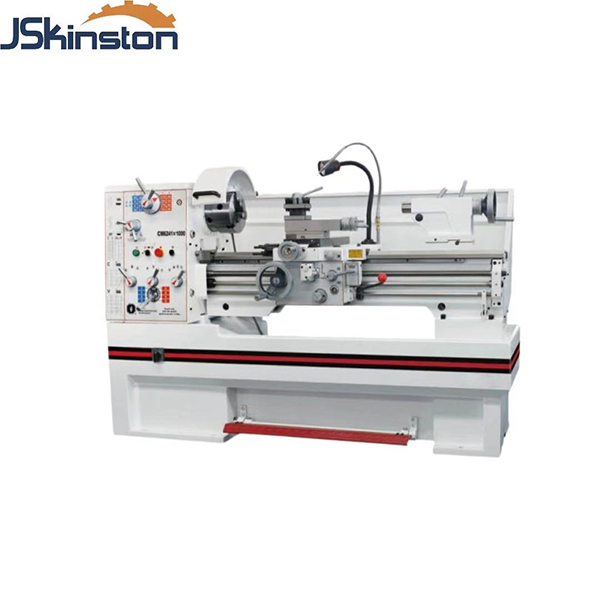

Kingston Brand Universal Lathe C6241

Specification

Model

Capacity

C6241

Swing over bed

410mm(16”)

Swing over cross slide

220mm(8-13/16”)

Swing in gap

640mm(25-1/8”)

Distance between centers

1000mm(40＂) 1500mm(60”)

Valid length of gap

165mm(6-1/2”)

Width of bed

300mm(11-13/16”)

Headstock

Spindle nose

D1-6

Spindle bore

58mm(2-1/4”)

Taper of spindle bore

No.6 Morse

Range of spindle speed

12 changes,25-2000r/min

Feeds and threads

Max.travel of top slide

120mm(4-3/4”)

Max.travel of cross slide

285mm(11-1/4”)

Max.section of tool

25X25mm(1”X1”)

Pitch thread of leadscrew

6mm or 4T.P.I.

Longitudinal feeds range

42 kinds,.0.031~1.7mm/rev(0.0011”~0.0633”/rev)

Cross feeds range

42 kinds,.0.014~0.784mm/rev(0.00033”~0.01837”/rev)

Metric threads range

41 kinds,0.1~14mm

Inch threads range

60 kinds,2~112T.P.I.

Diametrical pitches range

50 kinds,4~112T.P.I.

Module pitches range

30 kinds,0.1~7M.P.

Tailstock

Dia.of tailstock sleeve

60mm(2-5/16”)

Travel of tailstock sleeve

120mm(4-3/4”)

Taper of tailstock sleeve

No.4 Morse

Cross adjustock

Motor

Power of main motor

5.5kw(7.5HP)3HP

Power of coolant pump

0.1kw(1/8HP)3HP
