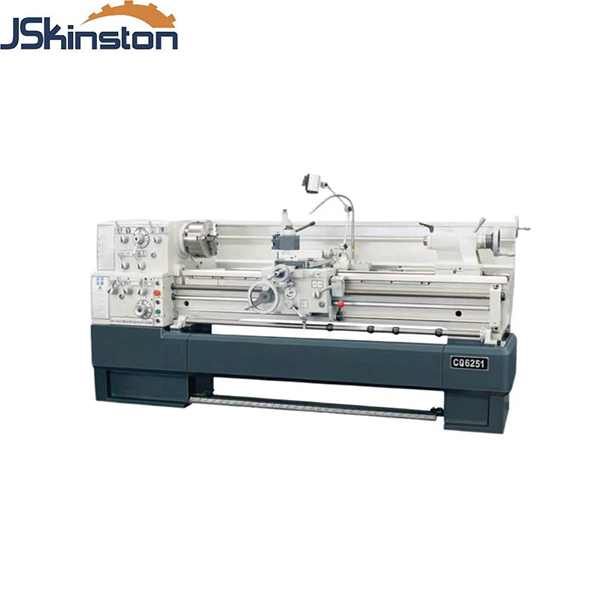

Kingston Brand Universal Lathe C6251

SPECIFICATIONS

MODEL

Capacity

C6251*3000

Swing over bed

510mm(20”)

Swing over cross slide

305mm(11-7/8”)

Swing in gap

735mm(29”)

Length of gap

200mm(8”)

Distance between centers

3000mm(120”)

Center height

1160mm

Width of bed

350mm(13-3/4”)

Headstock

Spindle nose

D1-8

Spindle bore

80mm(3-1/8”)

Taper of spindle bore

No.7 Morse

Range of spindle speed

12 changes,25-1600r/min

Feeds and threads

Max.travel of compound rest

130mm(5-1/8”)

Max.travel of cross slide

326mm(12-15/16”)

Leadscrew pitch

6mm or 4T.P.I.

Max.section of tool

25X25mm(1”X1”)

Longitudinal feeds range

35 kinds, 0.059~1.646mm/rev(0.0022”~0.0612”/rev)

Cross feeds range

35 kinds, 0.020~0.573mm (0.00048”~0.01354”)

Metric threads range

47 kinds, 0.2~14mm

Inch threads range

60 kinds, 2~112T.P.I.

Diametrical pitches range

50 kinds, 4~112D.P.

Module pitches range

34 kinds, 0.1~7M.P.

Tailstock

Dia.of tailstock sleeve

75mm(3”)

Travel of tailstock sleeve

180mm(7”)

Taper of tailstock sleeve

No.5 Morse

Cross adjustment

+- 13mm(+- 1/2”)

Motor

Power of main motor

7.5kw(10HP) 3HP

Power of coolant pump

0.1kw(1/8HP) 3HP

Overall dimension

4340X1150X1460
