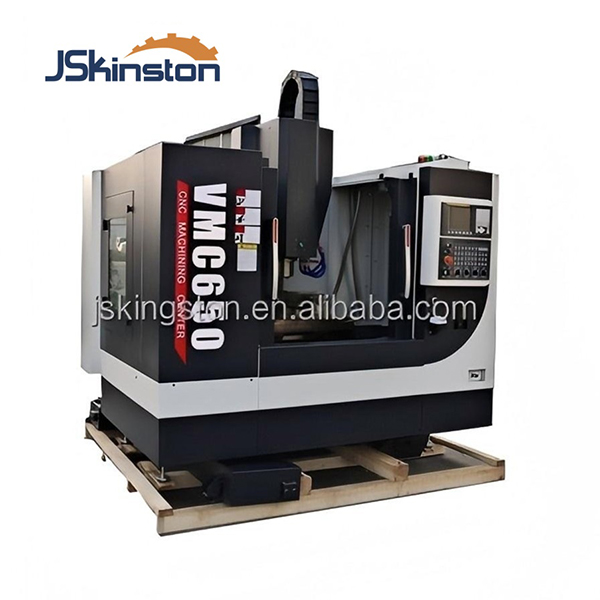

Kingston Brand Vertical Machine Center VMC650

Product Item : V2
Product description：Kingston Brand Vertical Machine Center VMC650 VMCseries Vertical Machining Center is a modern machine tool with automatic tool changer. It is mainly used for rough machining, half finishing or finish
Inquiry

Ø Machine Introduction

1. The machine tool uses the traditional O-type layout, with a compact, neat appearance and less occupied area.

2. The bed seat, vertical column, tool slide and other components are all adopt symmetric thermal and box type dense reinforcement grid stiffened ribbon design, shaped with resin sand, featuring high precision and stability as well as good rigidity.

3. X, Y, Z three-axis have large travel, especially suitable for the special needs of the mold making industry to increase stroke.

4. Spindle equipped with imported major unit assembly , stepless speed change, high rotating accuracy and good dynamic balance precision. And also mounted positioning ring restore unit and AC main motor to perform rigidity tapping in high speed.

5. Spindles with the float tool stroke avoid the tool stroke force to pass on the spindle bearings, and effectively improve the life of the spindle

6. Spindle with a big motor boasts high spindle speed, great power, suitable for high metal removal rate and efficient processing needs

7. X, Y, Z three-axis all adopts NSK special screw bearings with high precision. Plus pre-tensioning technique, it guarantees high rigidity and precision of the feed shaft.

8. Equipped with a complete security protection device and designs that integrate the electric, mechanical, and pneumatic technology, the machine boasts advanced layout, environmentally friendly design, and easy operation and maintenance.

Standard Configurations & Main Features:

* Siemens 808D as standard CNC system which has USB port.

* Meehanite cast iron after aging treatment, with high quality and less deformation.

* Precision ball screws ensure dynamic performance well and positioning accurately.

* Feeding axles are controlled by servo motors.

* Adopted independent spindle unit to ensure good movement precision, stiffness and stability.

* Spindle motor is Servo controlled.

* Integrated automatic lubrication system makes the maintenance more reliable.

* Configuration cooling pump.

* Mobile manual pulse generator makes easy to operate.

* Disc type tool changer.

* Full-enclosed shield.

Technical Data

Specifications	Unit	Vmc650
Table size	mm	920x330
Table maximum load	kg	300
X/Y/Z axis travel	mm	650x400x500
Distance between spindle center and column surface	mm	476
Distance between spindle end face and worktable surface	mm	100-600
X/Y/Z max. feed speed	mm/min	8000
X/Y/Z max.rapid traverse	mm/min	24000
Max. spindle speed	r/min	8000(10000 optional)
Spindle taper		BT40
Spindle motor	kw	7.5/11
X/Y/Z guide rail form		3 axis linear guide rail
T slot(number-width-pitch)		3-14-100
Repeat positioning accuracy	mm	±0.006
Tools type		Armless/arm
Tool magazine capacity		Armless:16/arm:16
Max.tool weight	kg	7
Max. tool length	mm	250/350
Electric capacity	KVA	15
Machine dimension	mm	2300x2200x2400
Machine weight	kg	5000
