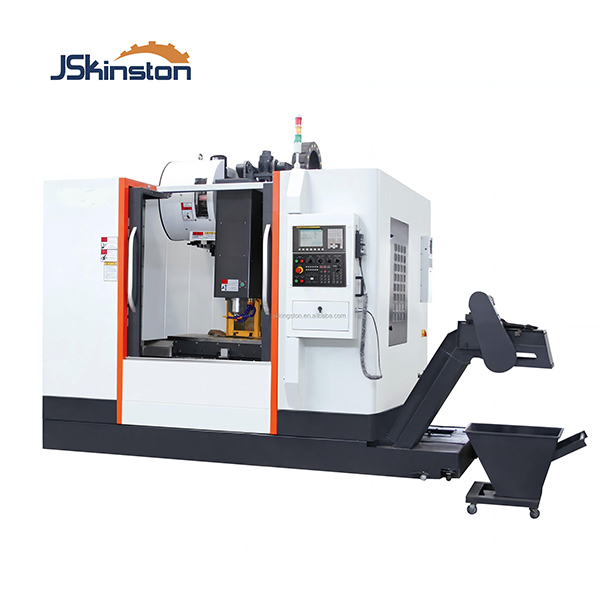

Kingston Brand Vertical Machine Center VMC850

VMC850/VMC1060 Series Vertical Machine Center

1.Features:

* Good rigidity: guide of a widened span for the machine body with high rigidity and great ability of shock absorption

* High efficiency: equipped with a tool magazine featuring swift automatic tool changing and rigidity tapping

* Large travel: larger travels in all three directions than those of the same specifications in the market

* Optimal configuration: imported major outsourcing parts and components including the CNC system, spindle unit, tools magazine, ball screw, bearings, etc

* New structure: Spindle with floating tool stroke and ball screw pre-tensioned to ensure long service life and steady accuracy.

2.Structure:

1) The machine tool uses the traditional O-type layout, with a compact, neat appearance and less occupied area.

2) The bed seat, vertical column, tool slide and other components are all adopt symmetric thermal and box type dense reinforcement grid stiffened ribbon design, shaped with resin sand, featuring high precision and stability as well as good rigidity.

3) X, Y, Z three-axis have large travel, especially suitable for the special needs of the mold making industry to increase stroke.

4) Spindle equipped with imported major unit assembly , stepless speed change, high rotating accuracy and good dynamic balance precision. And also mounted positioning ring restore unit and AC main motor to perform rigidity tapping in high speed.

5) Spindles with the float tool stroke avoid the tool stroke force to pass on the spindle bearings, and effectively improve the life of the spindle

6) Spindle with a big motor boasts high spindle speed, great power, suitable for high metal removal rate and efficient processing needs

7) X, Y, Z three-axis all adopt NSK special screw bearings with high precision. Plus pre-tensioning technique, it guarantees high rigidity and precision of the feed shaft.

8) Equipped with a complete security protection device and designs that integrate the electric, mechanical, and pneumatic technology, the machine boasts advanced layout, environmentally friendly design, and easy operation and maintenance.

3.Technical parameters:

4.Standard accessories:

1) Three axis hardened guide way

2) BT40 Spindle from Taiwan speed 8000rpm

3) Spindle motor:servo 7.5/11Kw

4) Spindle center blow

5) Automatic loosen tools

6) Screw gudieway auto centralized lubricating

7) High pressure water cooling

8) Air cooled

9) Full metal sheet splash guard

10) Manual remove chip

11) Umbrella type magazine with 16 tools from Taiwan

12) Fanuc 0i mate-TD

13) Mobile type electronic handwheel.

14) RS232 interface

15) 3 color warning light

5.Optional accessories:

1) FAUNC 0i mate-TD, Siemens 828D, GSK

2) The 4th-axis (Taiwan)

3) Oil cooling spindle

4) CF card/ Cutting test

5) Fanuc system insurance

6) Forceful cutting washing system

7) Chip removal device

8) BT40 Round plate with 24 tools A.T.C.capacity from Taiwan.

9) High precision and speed spindle unit 10000rpm from Taiwan
