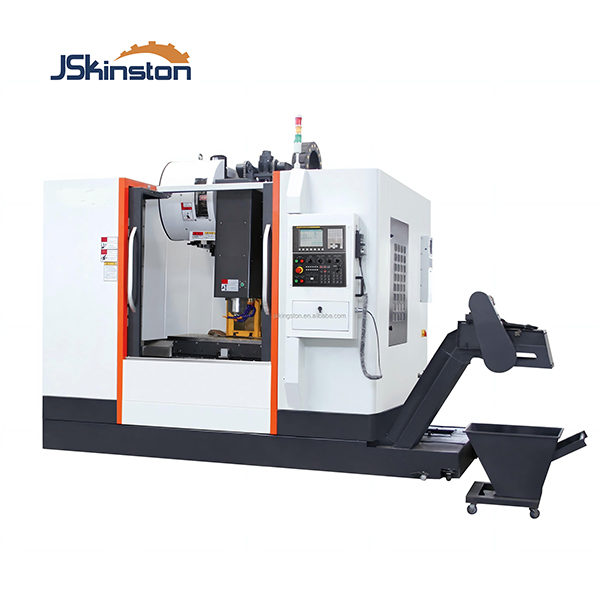

Kingston Brand Vertical Machine Center VMC450

Product Item : V1
Product description：Kingston Brand Vertical Machine Center VMC450 VMCseries Vertical Machining Center is a modern machine tool with automatic tool changer. It is mainly used for rough machining, half finishing or finish
Inquiry

VMC 450 CNC Machine Center

VMCseries Vertical Machining Center is a modern machine tool with automatic tool changer. It is mainly used for rough machining, half finishing or finishing parts which have complicate-shaped product surfaces, flats or holes. It can finish milling, drilling, boring, reaming and threading. The machine can improve the production efficiency, machining accuracy and saving the cost of human resources. It is the ideal processing machine for automobile, mechanic, mould, light and other manufacturing industries.

Standard Configurations & Main Features:

* Siemens 808D as standard CNC system which has USB port.

* Meehanite cast iron after aging treatment, with high quality and less deformation.

* Precision ball screws ensure dynamic performance well and positioning accurately.

* Feeding axles are controlled by servo motors.

* Adopted independent spindle unit to ensure good movement precision, stiffness and stability.

* Spindle motor is Servo controlled.

* Integrated automatic lubrication system makes the maintenance more reliable.

* Configuration cooling pump.

* Mobile manual pulse generator makes easy to operate.

* Disc type tool changer.

* Full-enclosed shield.

Technical Data

Specifications	Unit	VMC450
Table size	mm	920×280
Max loading capacity	kg	250
X-axis travel	mm	450
Y-axis travel	mm	300
Z-axis travel	mm	400
Distance from spindle nose to table	mm	110-510
Spindle inner taper	mm	ISO40
Tool		BT40
Spindle speed range		100-8000r/min
Cutting feed		X,Y:1-15000mm/min Z:5000mm/min
Rapid speed		X,Y:24000mm/min Z:8000mm/min
The vertical tolerance of distance between spindle nose and worktable	mm	≦0.02
Power of main motor	kw	5.5/7.5
Max spindle torque		35 N.M
Positioning accuracy	mm	0.011
Repeat positioning accuracy	mm	0.004
Tool capacity		16 disc
Positioning accuracy	mm	0.02
Repeat positioning accuracy	mm	0.01
Machine dimension	mm	2200×1750×2200
Machine weight	kg	3000
